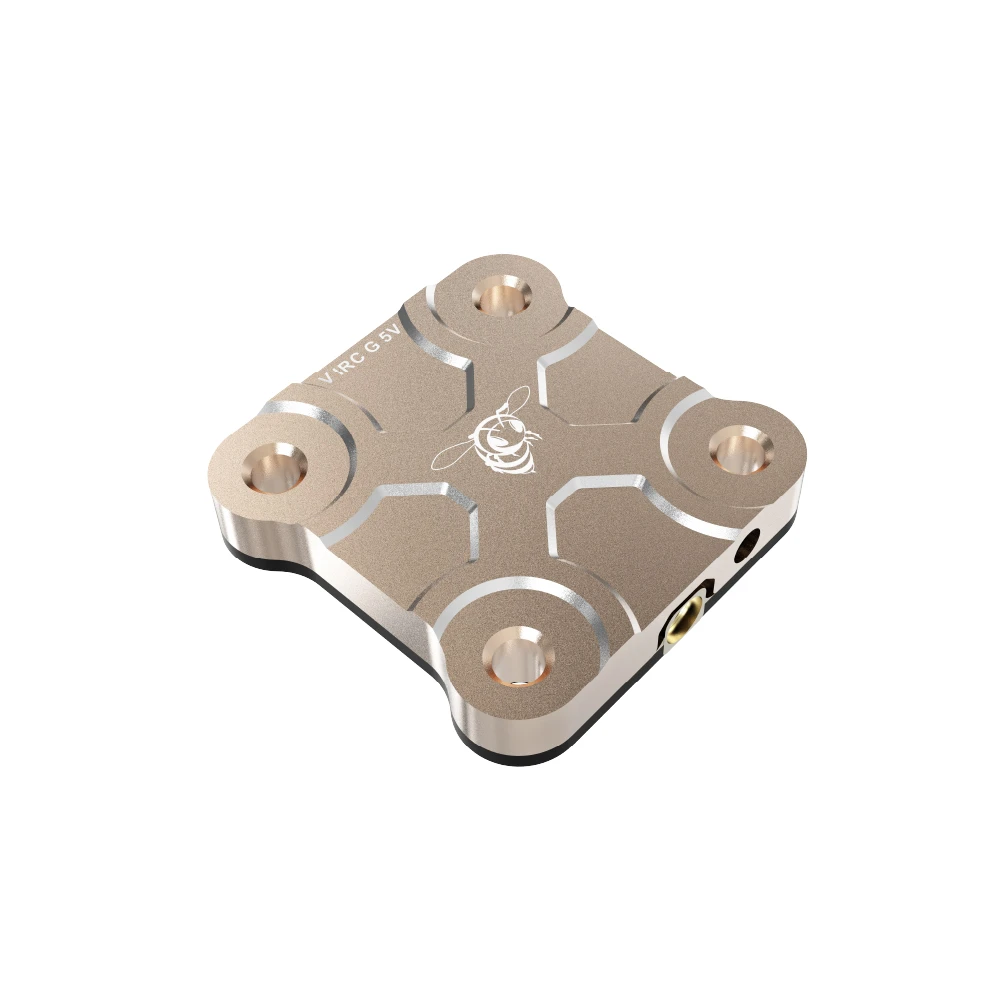

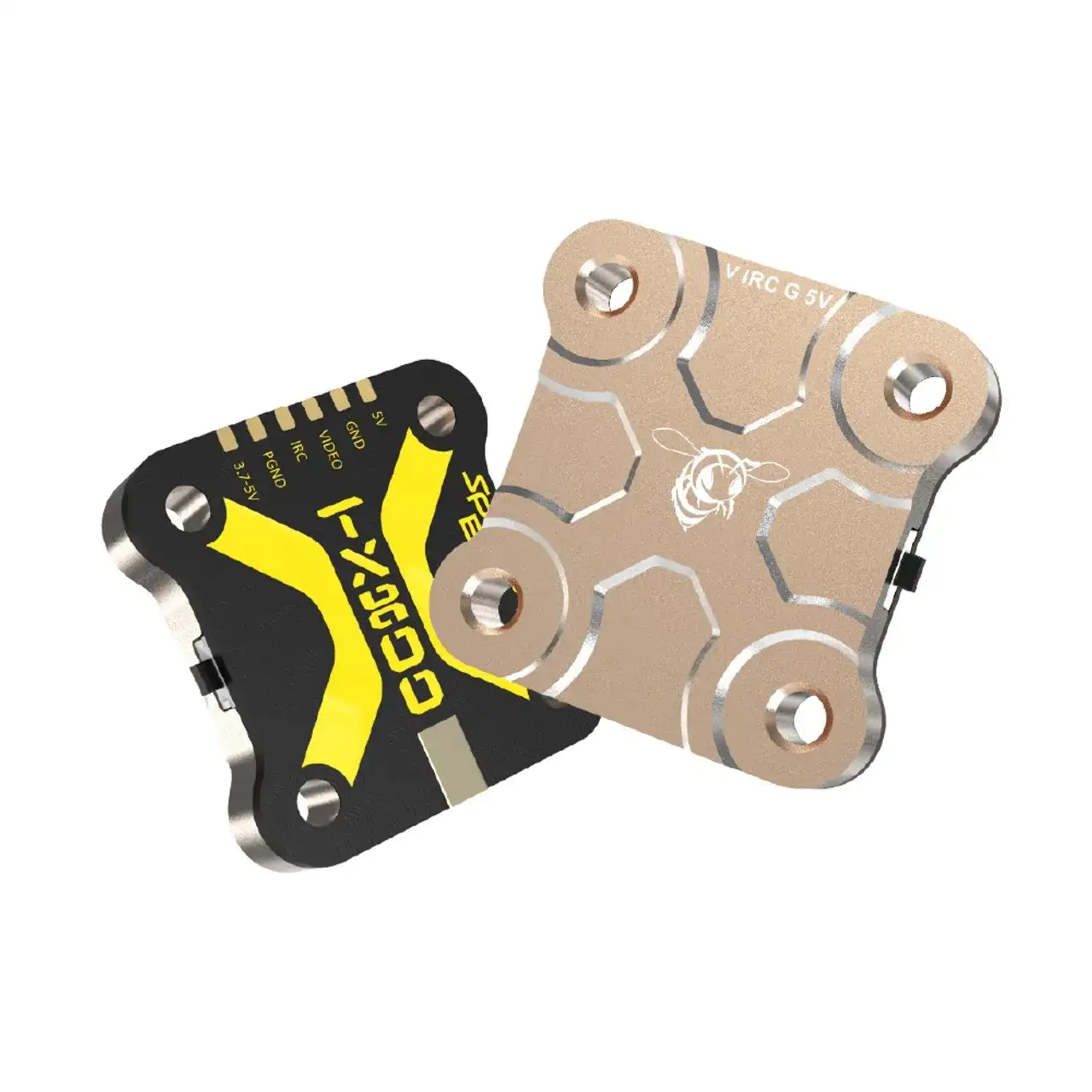

SpeedyBee TX800 5.8GHz Video Transmitter

The SpeedyBee TX800 is a high-quality 5.8GHz video transmitter (VTX) designed for FPV drones and racing quadcopters. With a compact and lightweight form factor, it offers ease of installation and integration. The TX800 supports various power output options, allowing pilots to adjust the transmission power to comply with local regulations and optimize range. It provides excellent video signal clarity and stability, reducing the chances of video interference during flights. Equipped with smart features like Pit Mode and a built-in microphone, the SpeedyBee TX800 is a reliable and versatile choice for FPV enthusiasts and racers.

Features:

1. SpeedyBee TX800 5.8GHz video transmitter (VTX)
2. Designed for FPV drones and racing quadcopters
3. Compact and lightweight form factor
4. Adjustable power output options for compliance and range optimization
5. Excellent video signal clarity and stability
6. Smart features include Pit Mode and a built-in microphone
7. Reliable and versatile choice for FPV enthusiasts and racers.

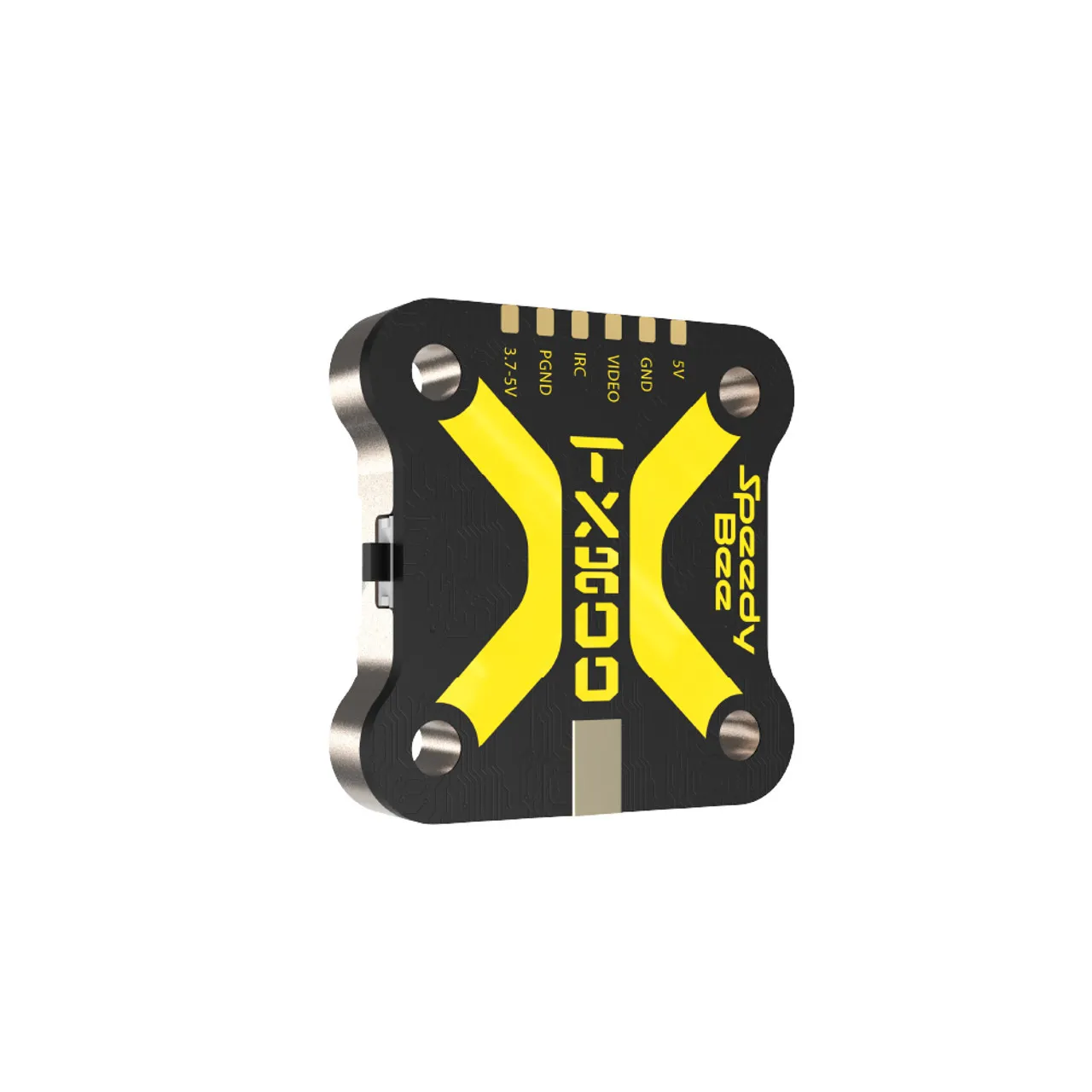

JST socket and ————
pad connection supported

For BetaFlight flight controller firmware above BetaFlight 4.1.0,
you need upload a VTX Table to the flight controller before using
the remote control to modify the video transmitter parameters
normally.download SpeedyBee-TX800(USA).json
download SpeedyBee-TX800(EU).jsonFor the use of the video transmitter table, please refer to this article
“How to Setup Betaflight VTX Table – SmartAudio Tramp VTX Control”
by Oscar Liang.

Pit Mode Support

When you are flying with other pilots in the same place,
Pit Mode helps you to power the drone more calmly without disturbing others.

Specifications:

Frequency Channel	5.8GHz 48CH
Output Power	PIT/25mW/200mW/400mW/800mW
Working Current	5V@250~750mA
Voltage out	5V@max 250mA
Voltage in	3.7-5V
Video input impedance	75 Ohm
Antenna Connector	MMCX
Weight	5.6g (without antenna)
PCB Size	28mm*28mm@20*20
Mounting holes	M4 holes on the PCB; M3 holes on the metal heat sink

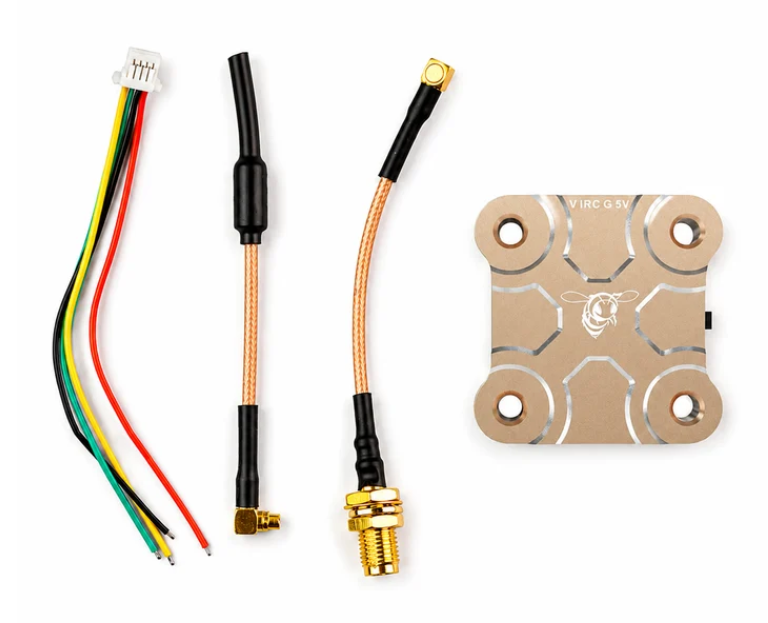

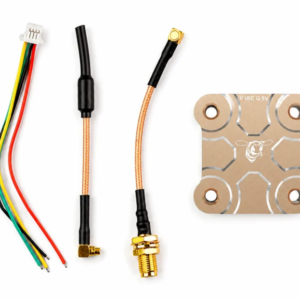

Package Includes:

1 x SpeedyBee TX800 5.8GHz Video Transmitter

1 x MMCX antenna

1 x MMCX to SMA Cable

1 x 1.0mm 4pin Cable
