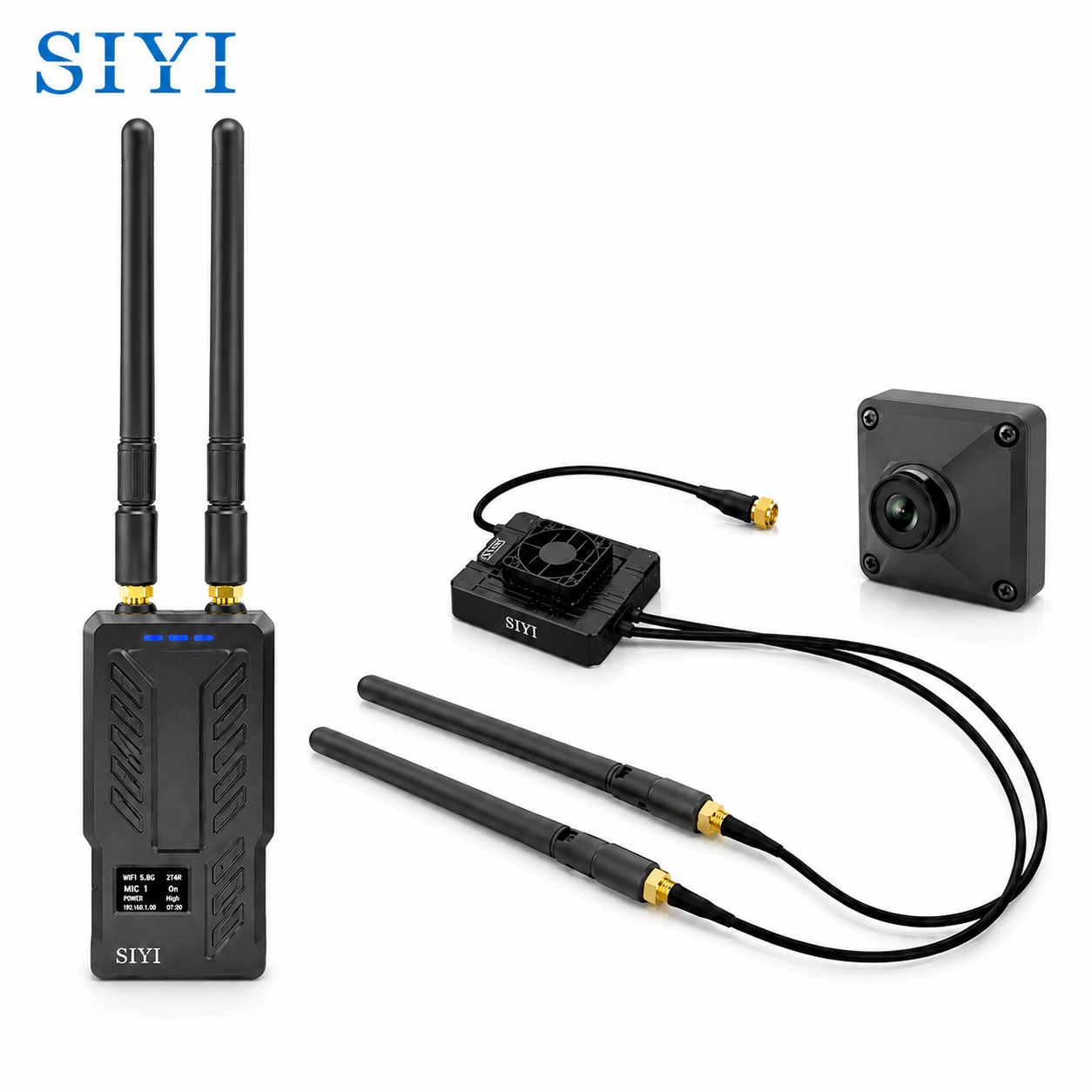

SIYI HM30 Long Range Full HD Digital Image Transmission FPV System 1080p 60fps 150ms SBUS PWM Mavlink Telemetry OSD 20KM CE FCC

The SIYI HM30 Full HD Digital Image Transmission FPV System is an advanced solution for first-person view (FPV) enthusiasts. This system offers high-definition video transmission with exceptional clarity, enabling real-time, immersive experiences for drone pilots and remote operators. Its compact design ensures easy integration with various drones and RC vehicles. With reliable digital transmission technology, it provides stable and lag-free video feeds, making it an ideal choice for capturing breathtaking aerial footage and enhancing the FPV flying experience.

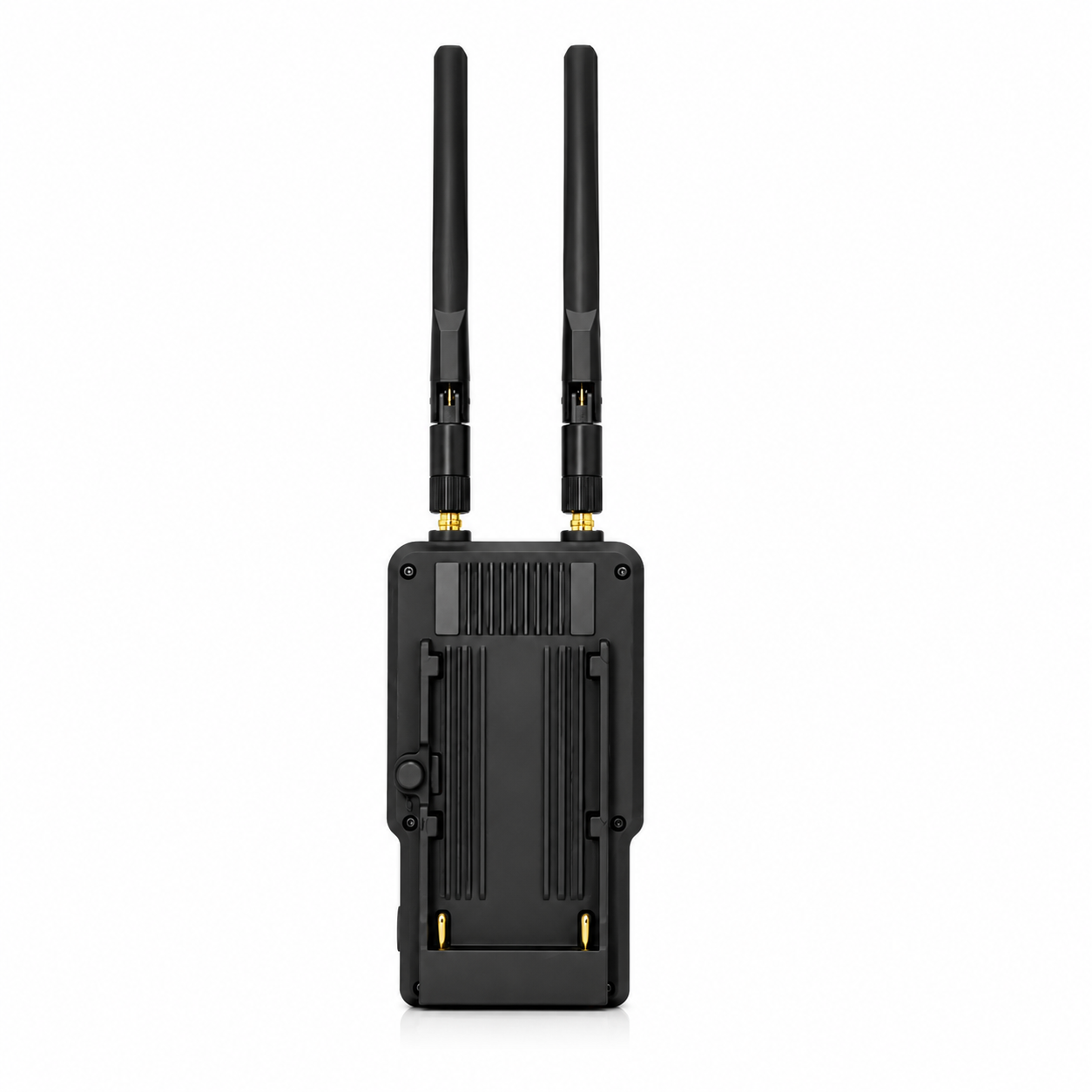

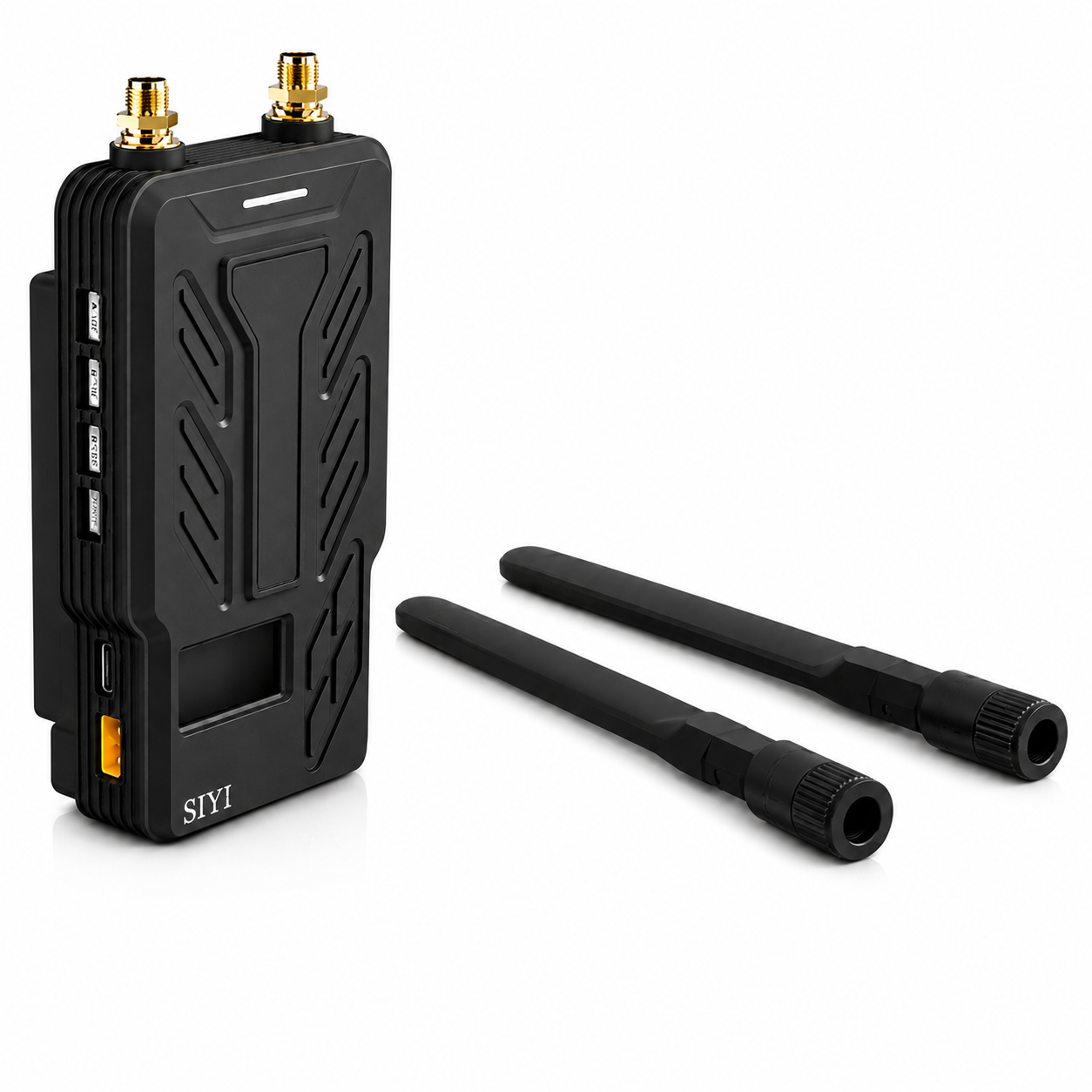

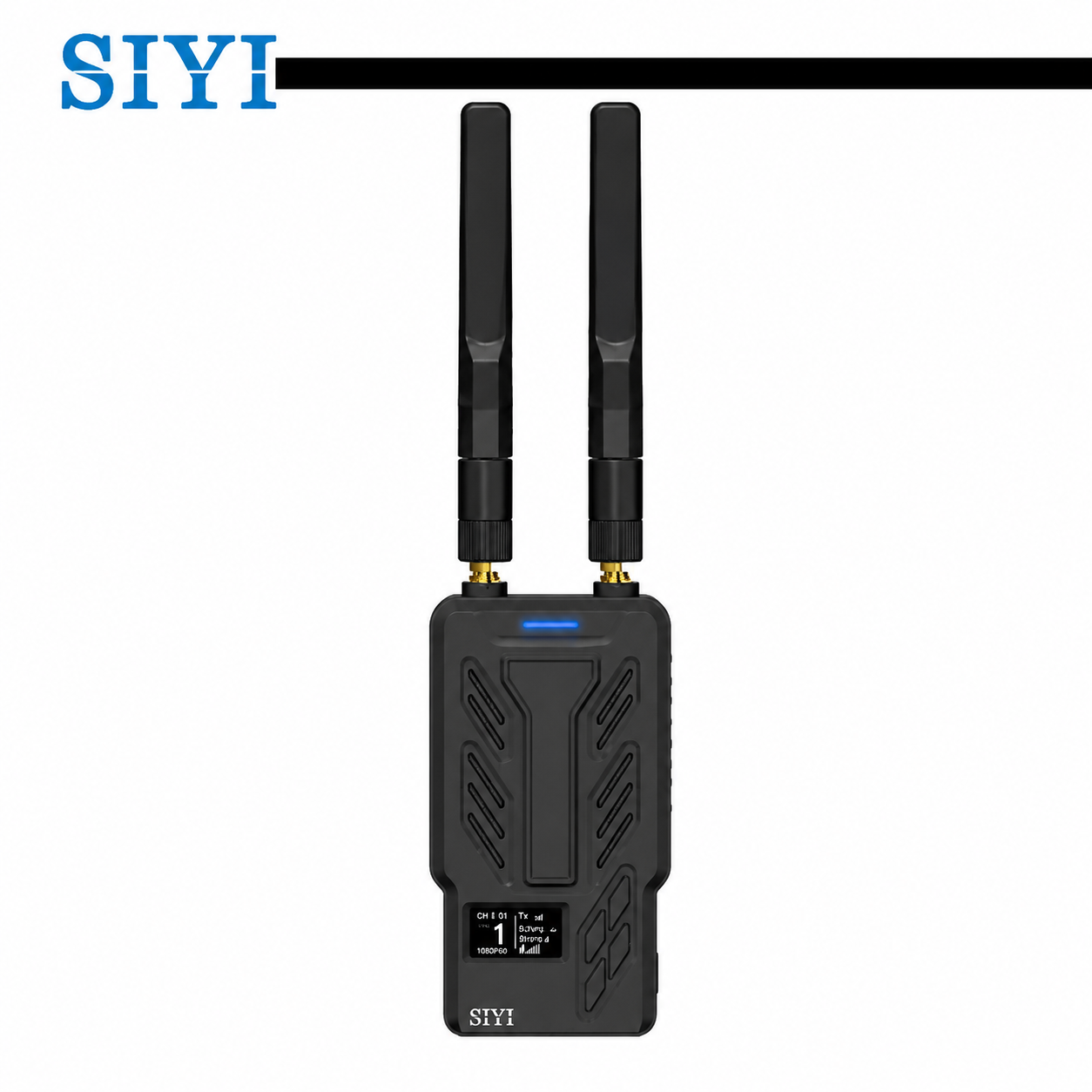

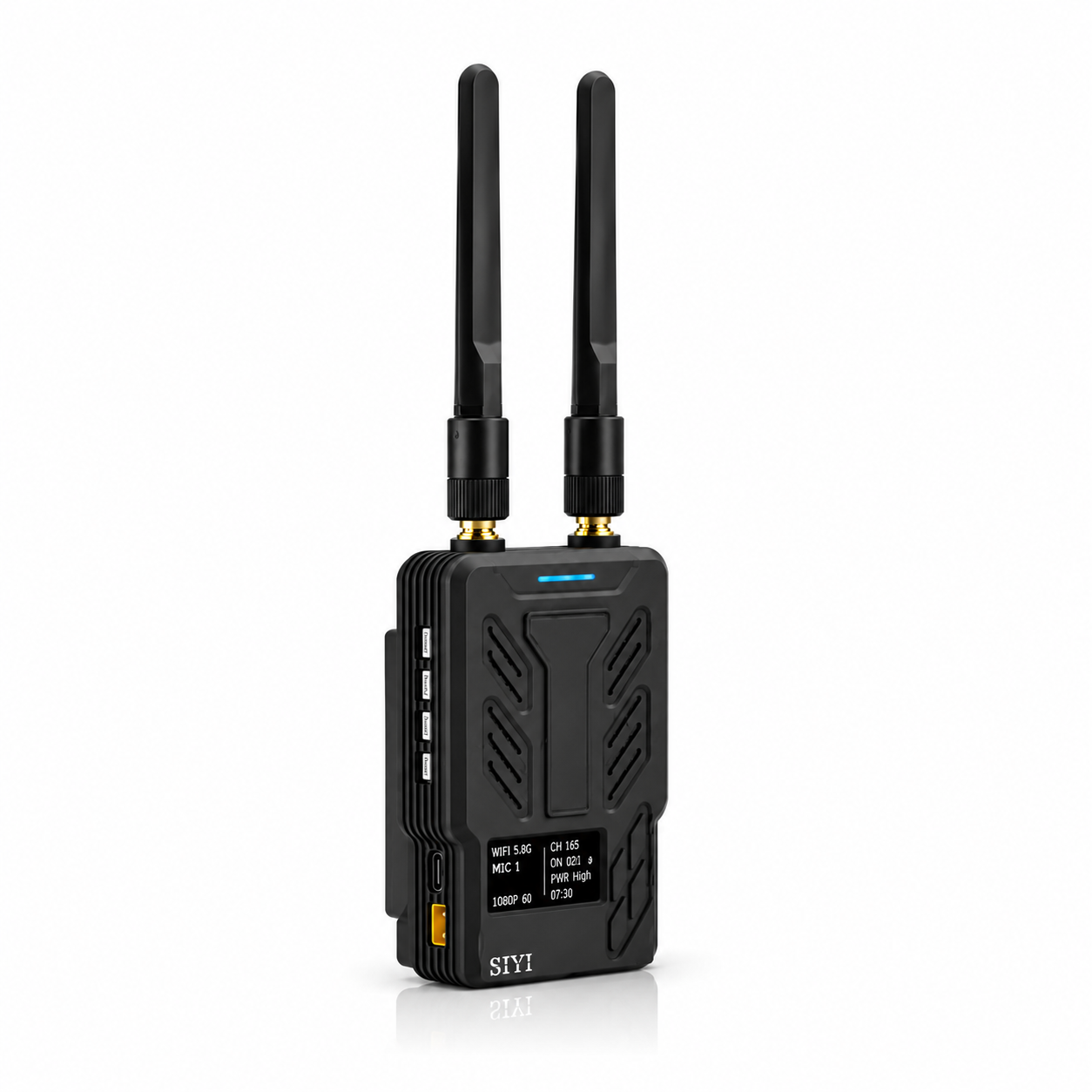

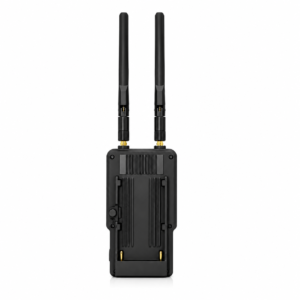

Ground Unit

Monitor Display: 0.96-inch OLED Screen

Dimensions (antennas and battery excluded): 109 x 61 x 28 mm

Weight (antenna and battery excluded): 132 g

Compatible Battery Type:

– NP-F550 / F750 / F770 / F950 / F970 series quick release batteries

(HM30 Fly More Combo comes with NP-F750 battery)

Fast Charging Protocol: PD 30W

Antenna Gain:

– Standard Omni Antennas: 5 dBi

– Standard Long Range Antennas: 11 dBi

Power Consumption: 5 W

Interface & Ports:

– S.Bus / PPM RC Signal Input: RC (GH1.25 4-Pin)

– Datalink Output: UART (GH1.25 4-Pin)

– Ethernet Port: LAN (GH1.25 4-Pin)

– Power Output: VCC (GH1.25 4-Pin)

– USB Video Output / Charging / Firmware Upgrade / USB WiFi: Type-C

– Power Input: PWR (XT30)

– Tripod Connector: 1/4-inch Screw Hole

Waterproof Level: IP53

Working Temperature: -10 to 50℃

Air Unit

Signal Output: 16 channels of S.BUS, 5 channels of PWM

Interface & Ports:

– SBUS: 3-Pin

– Datalink (to FC): UART 4-Pin

– PWM Channel 1 to 5: 6-Pin

– Video Input: Ethernet 8-Pin

– Firmware Upgrade: Type-C

Dimensions (antenna excluded, fan included): 70 x 55 x 16 mm

Weight (antenna excluded): 74 g

Antenna Gain (standard omni): 5 dBi

Power Input: 11 to 16.8 V (expandable to 4S to 18S with BEC)

Working Temperature: -10 to 50℃

FPV Camera

Frame & Bitrate: 720p 30fps 1.57Mbps H.265 (or 1080p 30fps 2.3 Mbps H.265 only as the reference to DIY configuration)

Sensor: 1/2.9″ CMOS

Effective Resolution: 3 MP

Lens: 3.2 mm, F/2.8

Camera Angle: FOV 105°

Dimensions: 42 x 42 x 25 mm

Weight: 23 g

Cable Lens: 1000 mm

Working Temperature: -10 to 55℃

Features:

1. High-definition digital video transmission.
2. Seamless FPV experience for drone pilots.
3. Compact and easily integrated with drones.
4. Reliable and lag-free video feeds.
5. Enhances aerial photography and videography.
6. Ideal for remote operators seeking real-time clarity.
7. Advanced technology for immersive FPV adventures.

Package Includes:

1 x SIYI HM30 Full HD Digital Image Transmission FPV System
