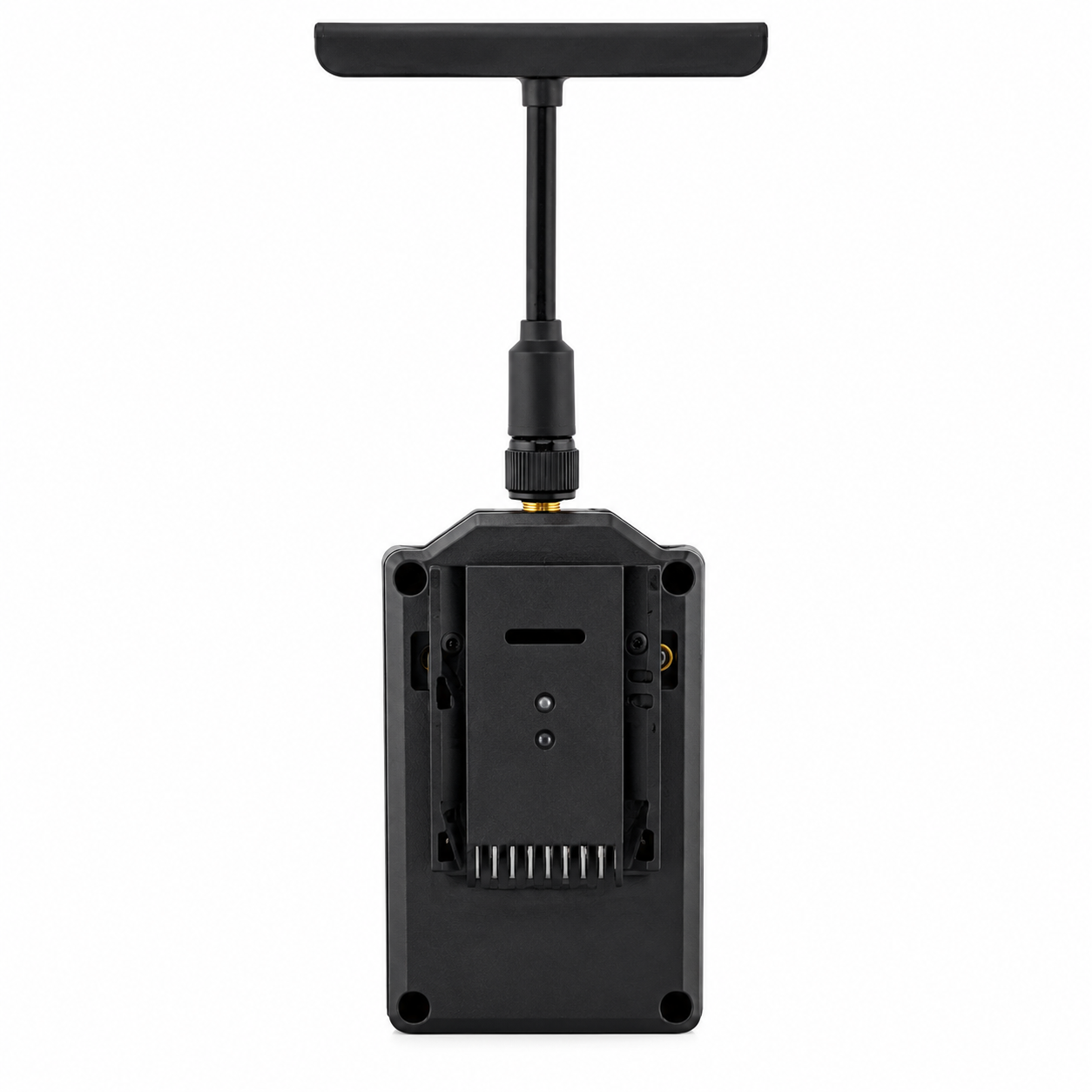

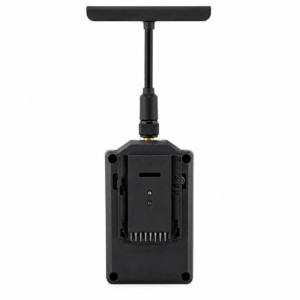

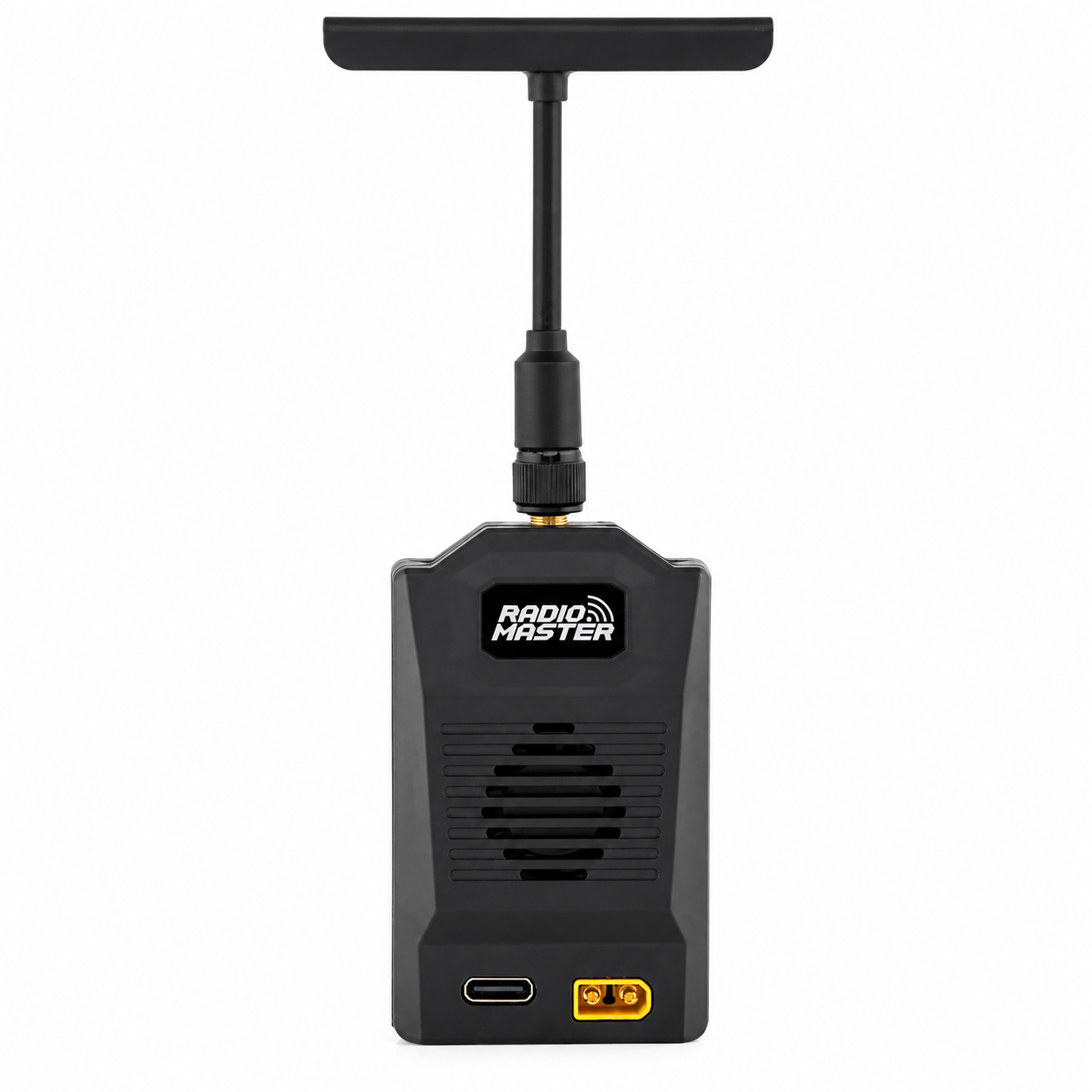

Ranger Nano 2.4GHZ ELRS Module

 Want to experience the efficiency, stability, and low-latency link of the Express LRS protocol without purchasing a new radio? Radio Master has you covered! Featuring F-1000Hz refresh rates and a high-efficiency cooling system, the Ranger Nano 2.4GHz ELRS Module represents the cutting edge in ELRS technology. Attach the module to a compatible radio (Radio Master Zorro and more) to enjoy all that ELRS has to offer.

The included T-shape antenna is designed for maximum signal coverage. An optional MOXON antenna is available for directional applications.

Features

• Built-in Express LRS Backpack
• High-efficiency cooling system
• Wifi and Bluetooth support
• Packet rates up to F-1000Hz
• T-antenna included
• With the Nano connector, support Zorro radio

Specification

• Item: Ranger Nano Module
• Regulatory Domain: ISM2400
• MCU: ESP32(main), ESP8285(aux, as ESP backpack)
• RF chip: SX1281IMLTRT
• Frequency Range: 2400 MHz – 2480 MHz
• Maximum packet rate: 500Hz/F-1000Hz (F-1000Hz mode requires Egde TX 2.7.1 or later)
• Minimum receiver refresh rate: 25Hz
• Wifi Support: Yes
• Bluetooth support: Yes

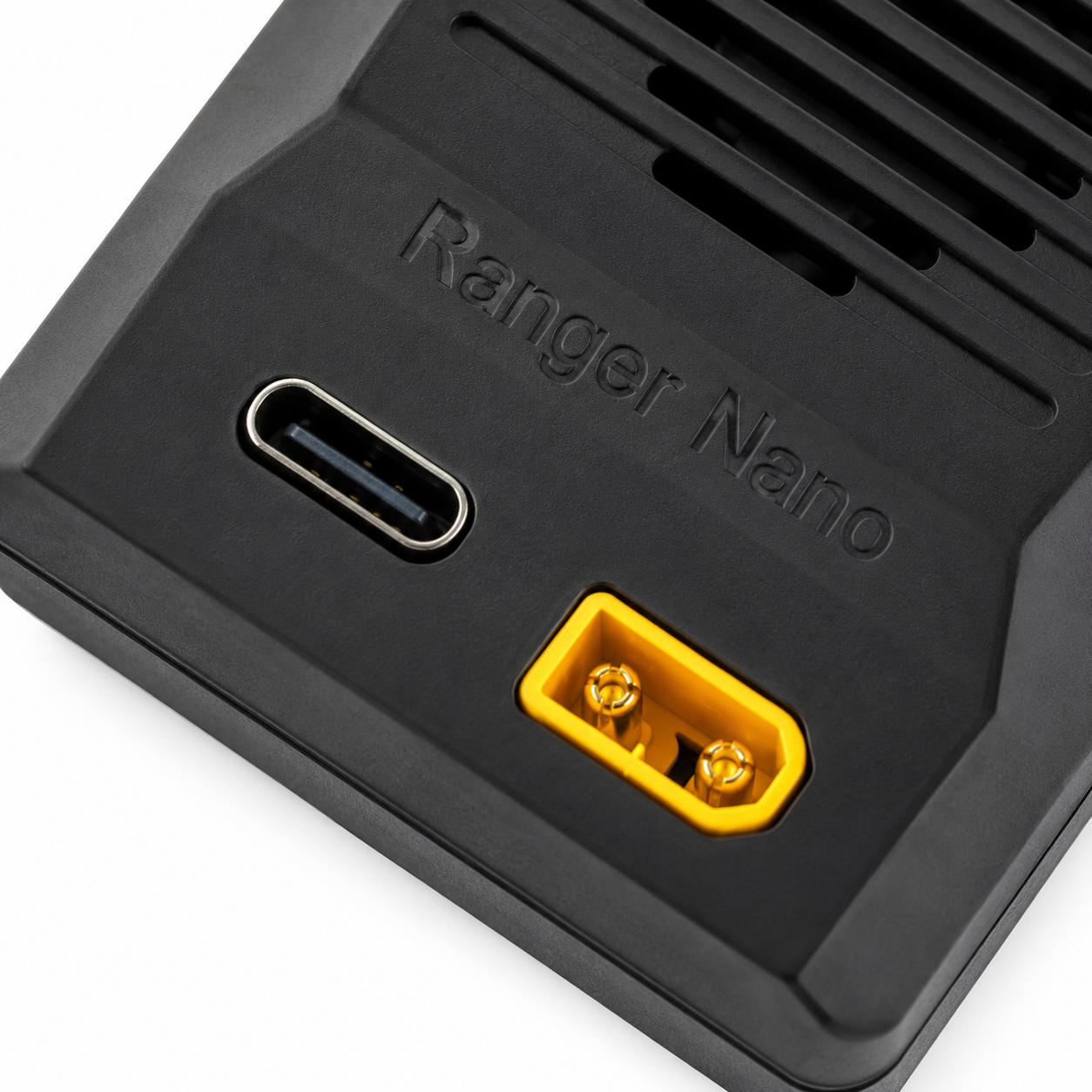

• XT30 Power supply voltage: DC 6V – 16.8V
• Weight: 48g (with antenna) / 39g (without antenna)
• Dimension: 136*42*26mm (with T antenna) / 74*42*26mm (without antenna)

Ranger Series

We wish to thank the Express LRS team for their support and testing during the development of the Ranger series. Ranger 2.4GHZ ELRS Module

• Ranger Micro 2.4GHZ ELRS Module
• Ranger Nano 2.4GHZ ELRS Module
• 2.4GHZ T Antenna
• 2.4GHZ Moxon Antenna

Package Includes

• 1 * Ranger Nano Module
• 1 * T Antena

Ranger Nano is installed with ExpressLRS as standard.

ExpressLRS is an open-source, high-performance radio control link that delivers exceptional range and low-latency communication using advanced LoRa technology. It’s highly customizable and perfect for RC enthusiasts looking for reliability and efficiency.

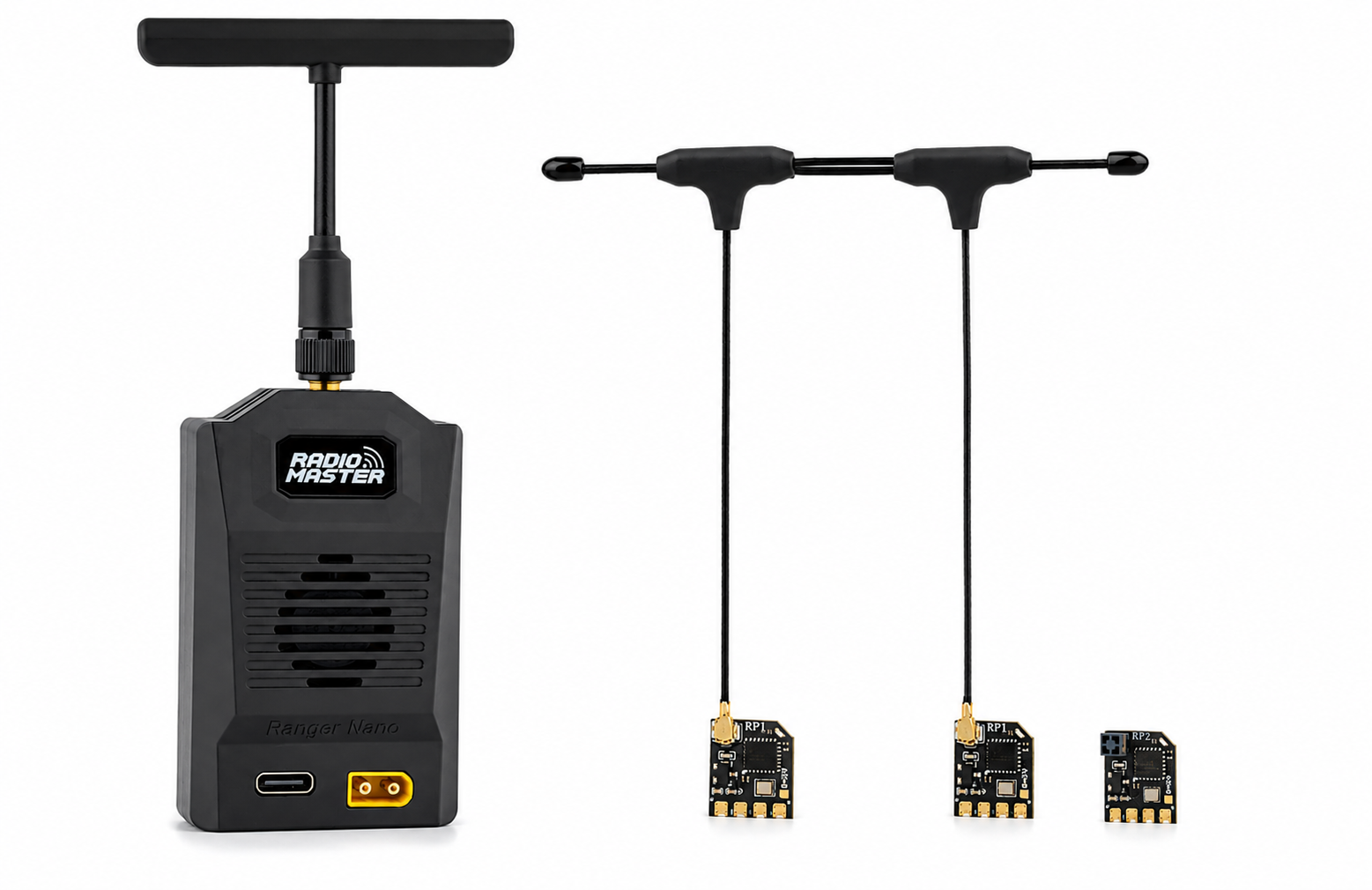

Pair your Express LRS with Radiomaster’s top-tier transmitters and receivers. Radiomaster products are designed to maximize the benefits of Express LRS, offering state-of-the-art performance for your RC adventures. Upgrade your RC experience with the unbeatable combination of Express LRS and Radiomaster—engineered for excellence and tailored for you.
