- Available in ExpressLRS Backpack and MPM CC2500 versions
- Preinstalled with EdgeTX firmware
- 18650 Batteries, all the power you need for hours of fun (Batteries not included)

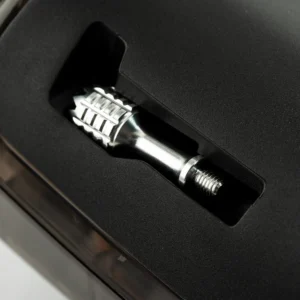

- Portable and lightweight design with removable stick ends and foldable antenna

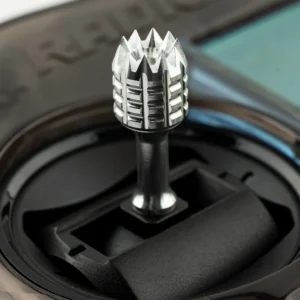

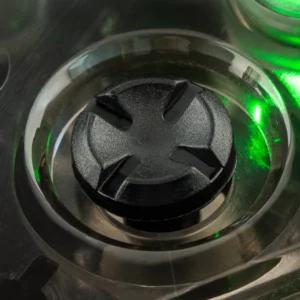

- Features hall effect gimbals as standard for smooth centering & precise response
- Built-in LED lights help visualize your switch positions (SA & SD)
- Backlit LCD Screen offering a perfect balance of size and functionality

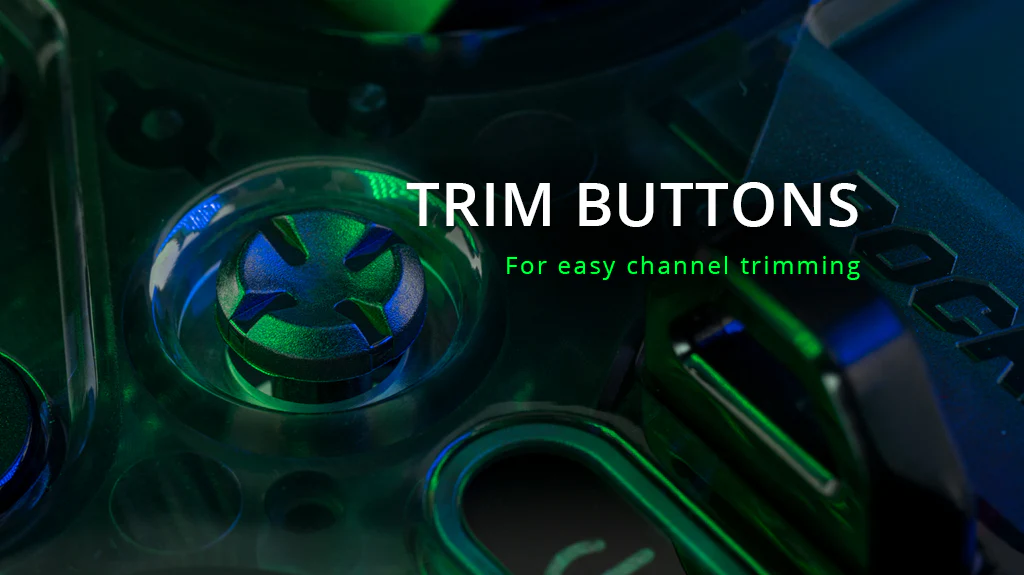

- Trim buttons for easy channel trimming

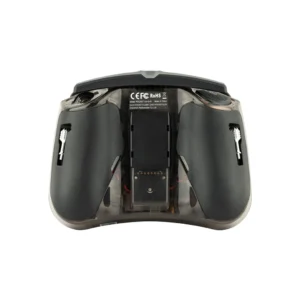

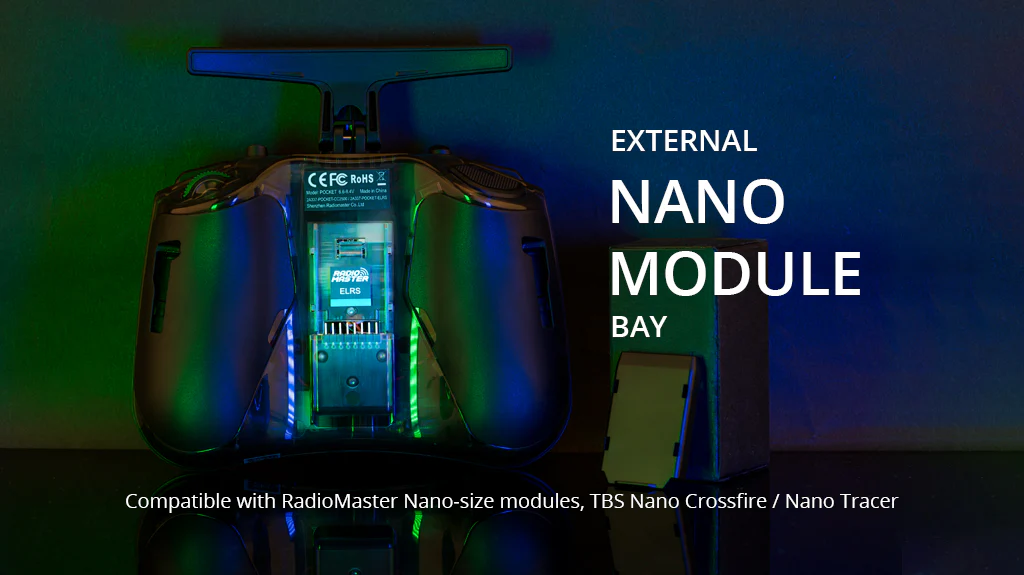

- External Module Bay compatible with RadioMaster Nano-size modules and TBS Nano Crossfire/Nano Tracer

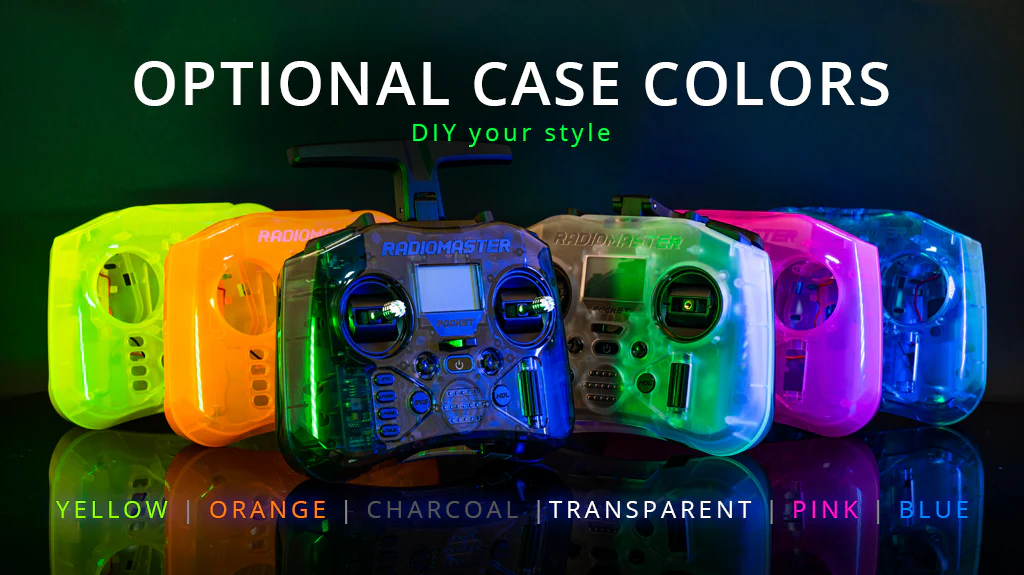

- 2 Stylish Colors of Charcoal & Transparent version and optional case colors in Blue, Pink, Green, and Orange to suit your style

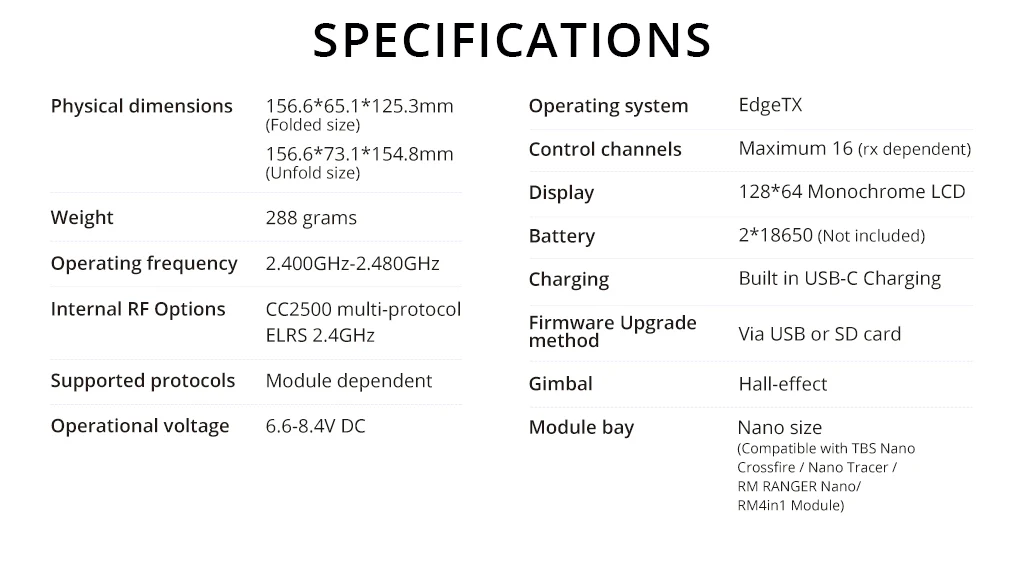

Specifications
- Item: Pocket Radio
- Physical dimensions: 156.6*65.1*125.3mm (Folded size) /156.6*73.1*154.8mm (Unfold size）
- Weight: 288 grams
- Operating frequency: 2.400GHz-2.480GHz
- Internal RF Options: CC2500 multi-protocol / ELRS 2.4GHz
- Supported protocols: Module dependent
- Operational voltage: 6.6-8.4v DC
- Operating system: EdgeTX
- Control channels: Maximum 16 (Receiver dependent)
- Display: 128*64 Monochrome LCD
- Battery: 2pcs 18650 batteries (Not included)
- Charging: Built in USB-C QC3 Charging
- Upgradable Firmware: Via USB or the included SD card
- Gimbal: Hall-effect
- Module bay: Nano size (Compatible with RadioMaster Nano-size modules, TBS Nano Crossfire / Nano Tracer )
Available with ExpressLRS and CC2500 Version
- CC2500 (standard) Version supports all CC2500 protocols
- ELRS (standard) is pre-installed with ExpressLRS ISM FW (Max power is hardware dependent)
About LBT version
- CC2500 LBT Version (Europe) is limited to LBT compliant protocols FrSKY X/X2 LBT & HoTT LBT
- ELRS LBT (Europe) Version is pre-installed with ExpressLRS CE EU domain LBT FW (Limited to 100mw power output)

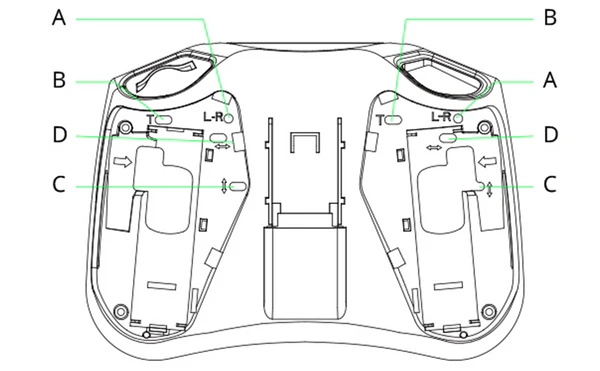

Gimbal Adjustment
A L-R
To switch M1/M2. Turn clockwise to disable self-centering (Throttle). Turn counterclockwise to enable self-centering (Elevator).
B T
To adjust the throttle stick tension. Turn clockwise to increase stick tension. Turn counterclockwise to decrease stick tension.
C UP-DOWN
Turn clockwise to increase vertical stick tension.
Turn counterclockwise to decrease stick tension.
D LEFT-RIGHT
Turn clockwise to increase horizontal stick tension.
Turn counterclockwise to decrease stick tension.

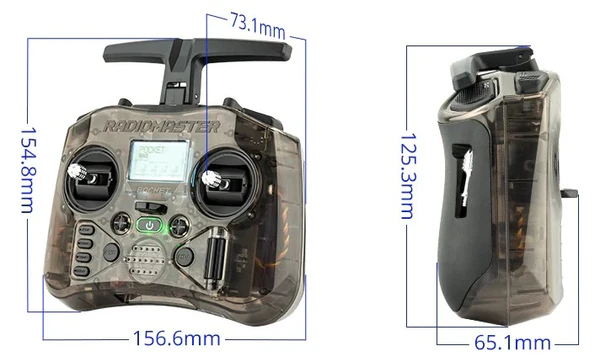

Dimensions

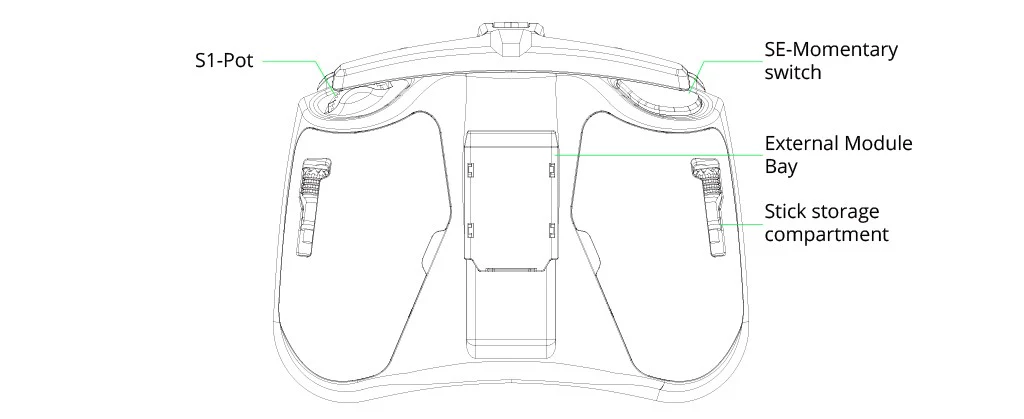

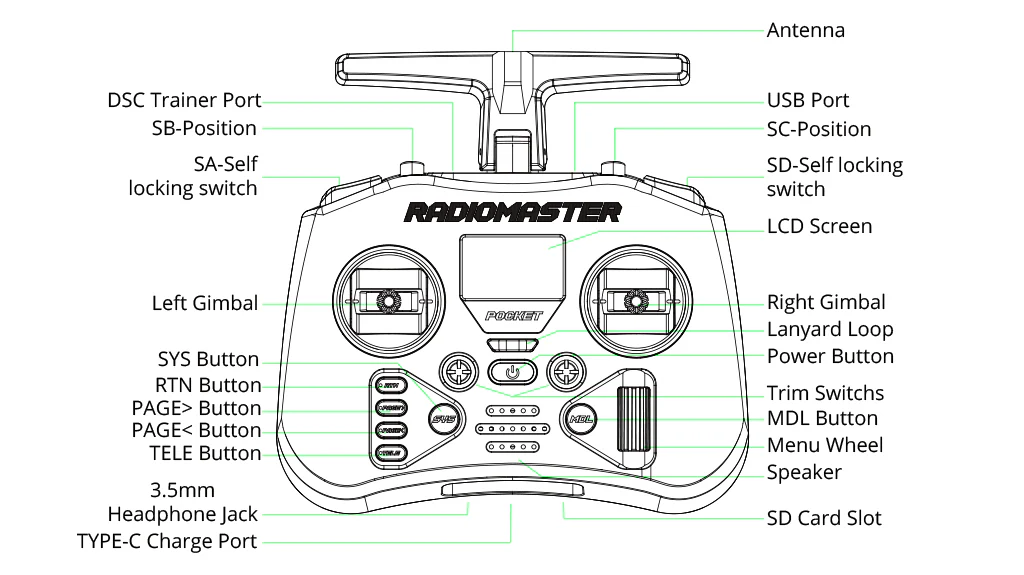

Radio Overview
Optional Accessories
- 18650 Batteries
- Optional cases in Blue, Pink, Green, Orange, Charcoal and Transparent
- Ranger Nano Module
- RM 4in1 Module
Download

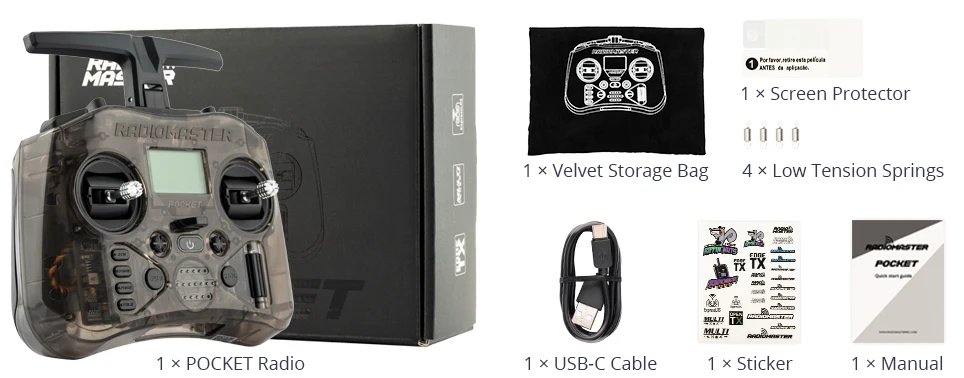

Package Including
- 1 * Pocket Radio
- 1 * Custom Carry Pouch
- 1 * USB-C Cable
- 1 * Screen Protector
- 1 * Sticker
- 4 * Low Tension Springs
- 1 * Manual
