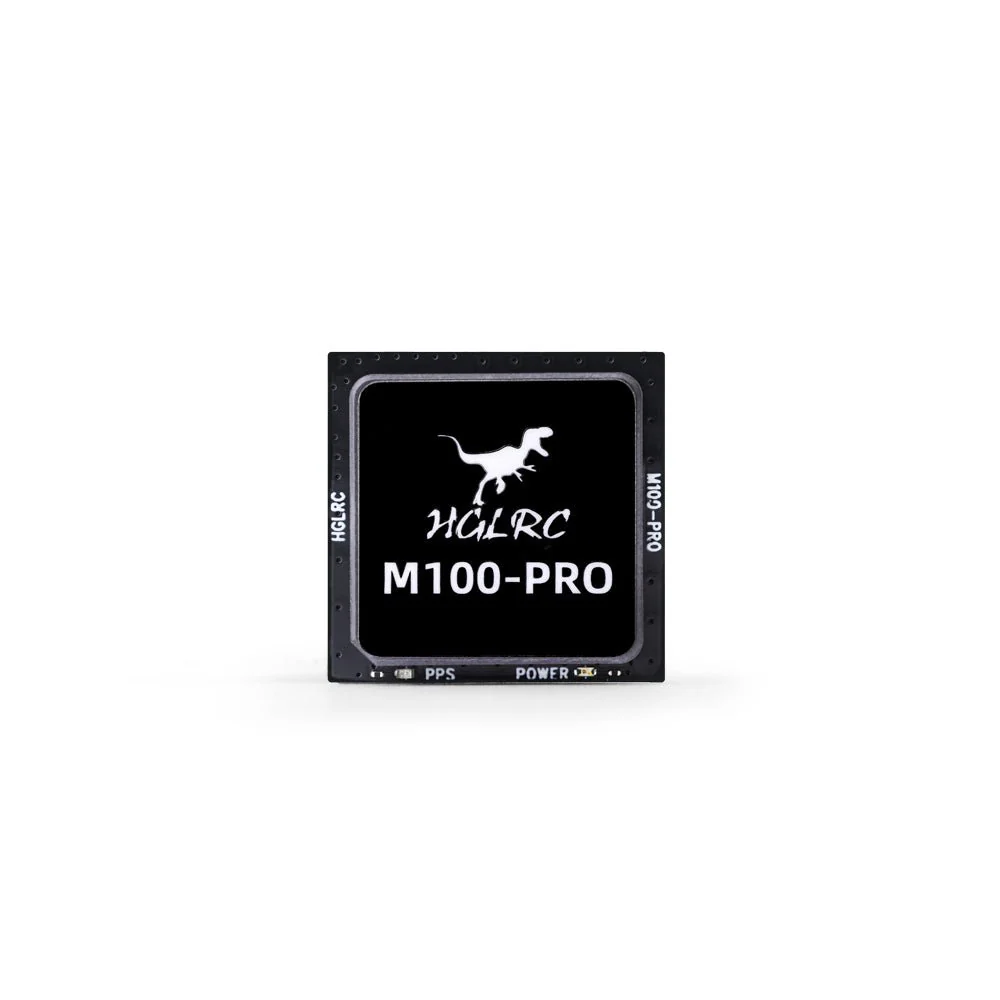

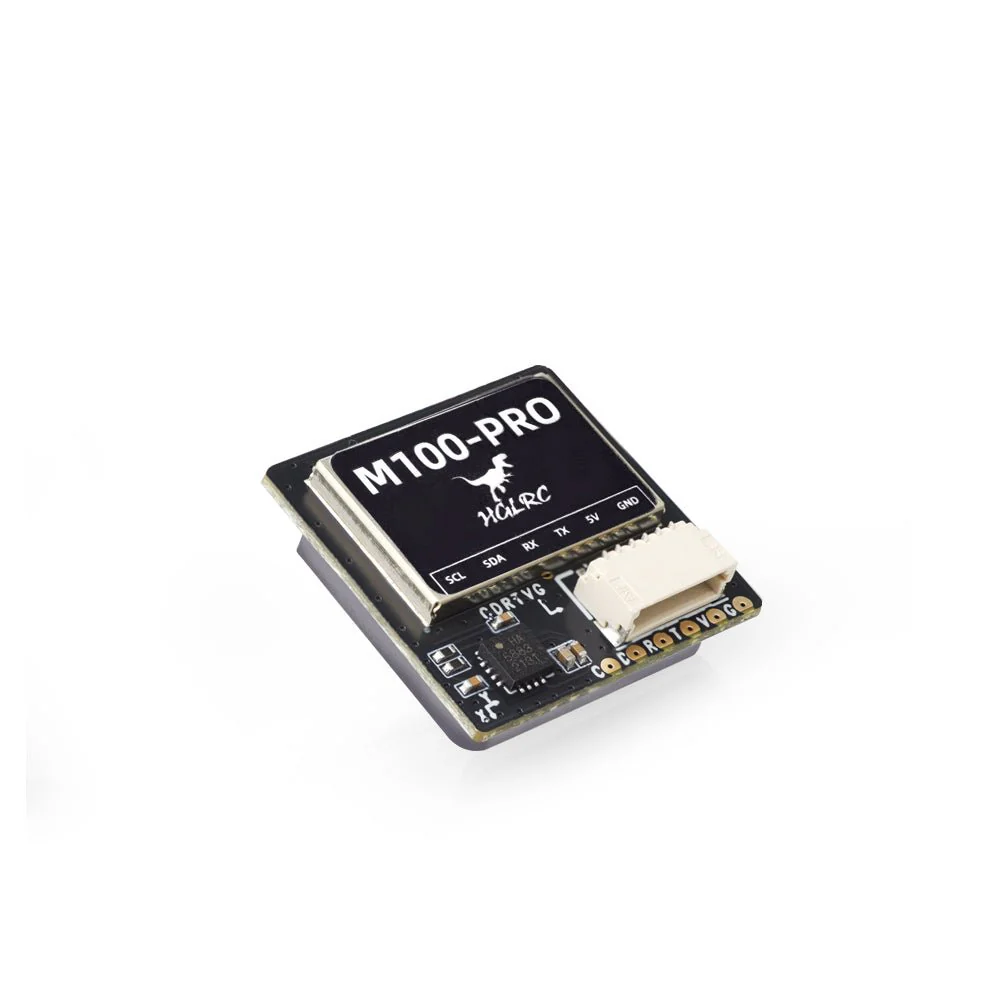

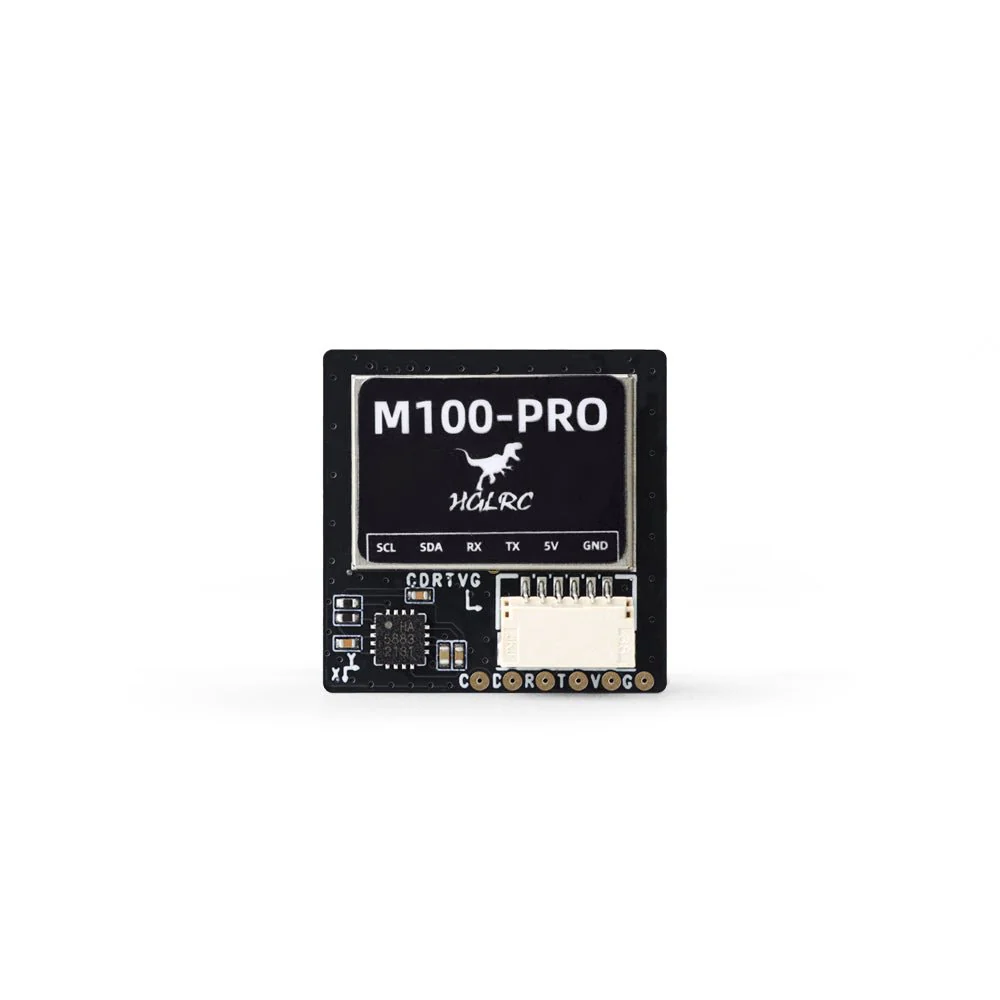

HGLRC M100 PRO GPS

The HGLRC M100 PRO GPS is a compact and high-precision GPS module designed for drone applications. It utilizes a u-blox M10 chip, offering fast and accurate positioning with support for multiple satellite constellations, including GPS, GLONASS, Galileo, and BeiDou. This multi-constellation capability enhances signal reliability and accuracy, even in challenging environments. The module is known for its low power consumption and small form factor, making it ideal for space-constrained builds. Additionally, it often features a built-in compass for heading information and a high update rate, contributing to stable and reliable flight performance.

Features:

• Adopting the new 10th generation chip, the number of satellite searches is 50+
• QMC5883L compass, more accurate pointing
• The receiving channel is expanded to 120ch, and the satellites can search more and faster into the chip.
• Five-mode positioning, strong and stable signal to protect you.

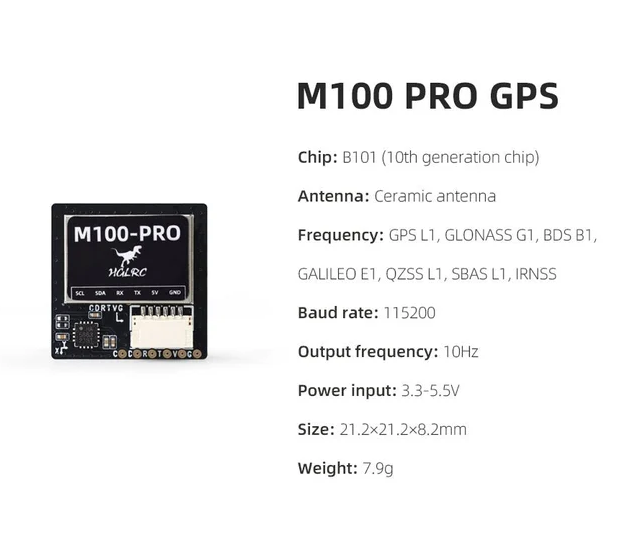

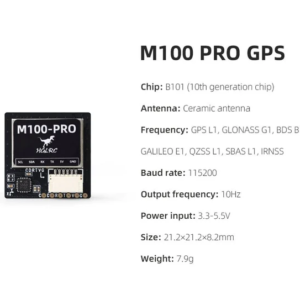

Product parametres:

• Chip: B101 (10th generation chip)
• Receiving channel: 120
• Baud rate: 115200  Protocol: UBX
• Antenna: ceramic antenna  Output frequency: 10Hz
• Frequency: GPS L1, GLONASS G1, BDS B1,
• GALILEO E1, QZSS L1, SBAS L1, IRNSS
• Power input: 3.6-5.5V
• Weight: 7.9g  Acceleration 4G
• Speed: 500m/s

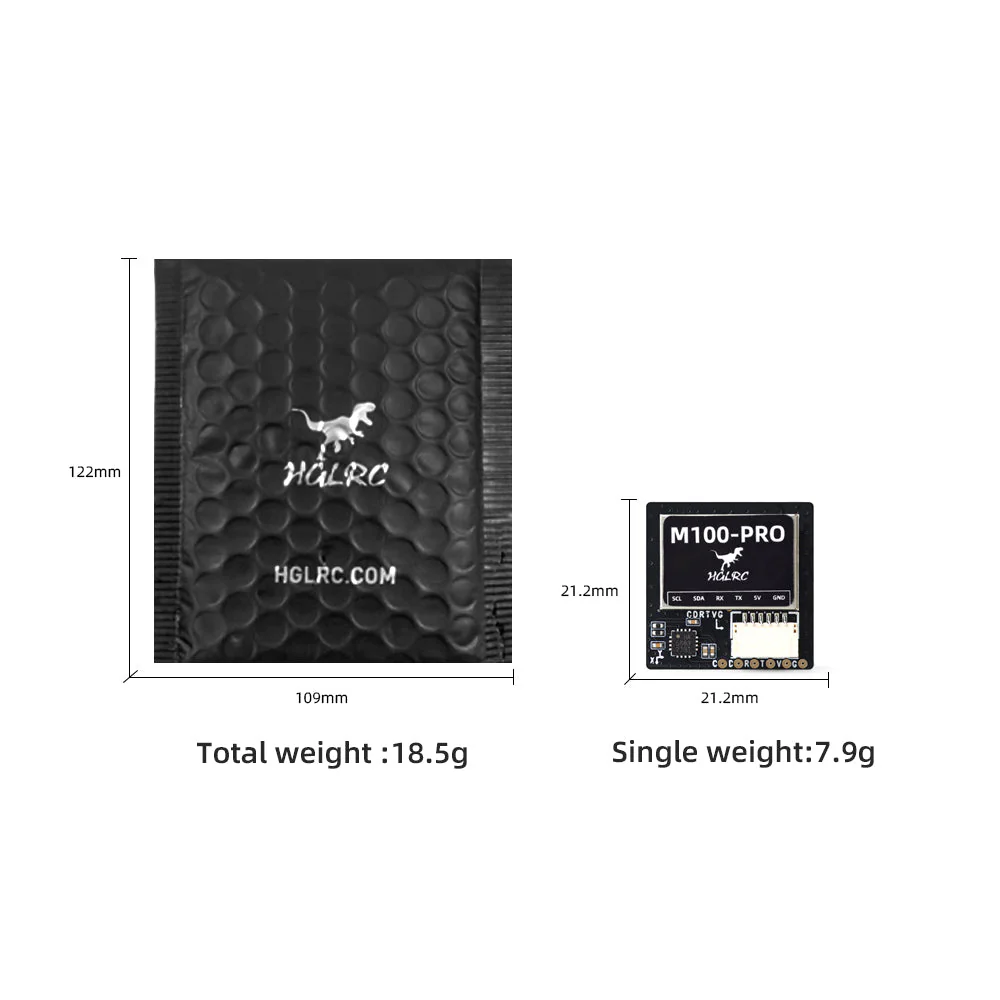

• Size: 21.2×21.2×8.2mm
• Operating temperature: -40℃~+85℃
• Storage temperature: -40℃~+105℃

Package Includes:

• HGLRC M100 PRO GPS x 1
• Heat shrink tube (φ18mm x 25mm) x 1
• HGLRC sticker x 1
• HGLRC manual x 1
• SH1.0-6pin cable x 1
