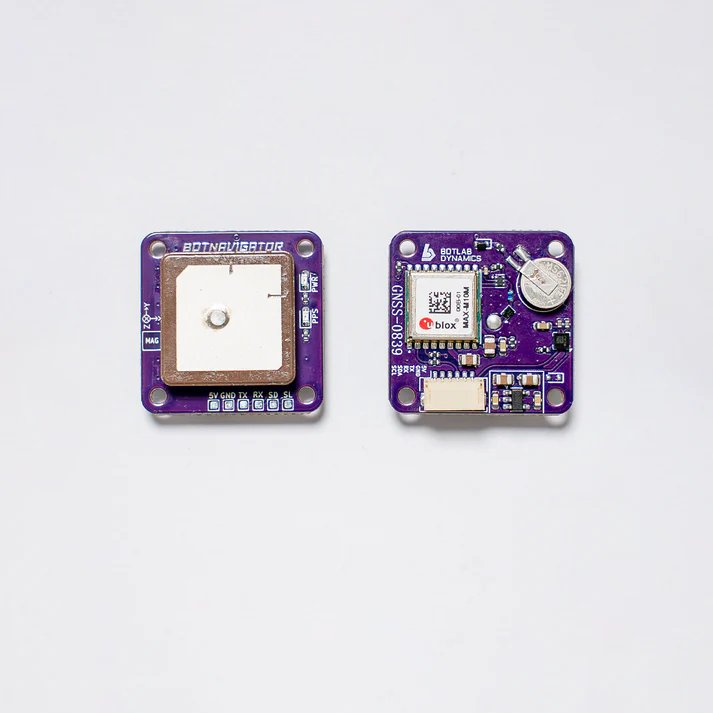

BotNavigator GNSS V1 Module

BotNavigator GNSS V1 Guide:

Advanced GPS Performance: Powered by the u-blox M10 receiver, supporting GPS L1, GLONASS L1, BDS B1, Galileo E1, SBAS L1, and QZSS L1 for global satellite coverage.

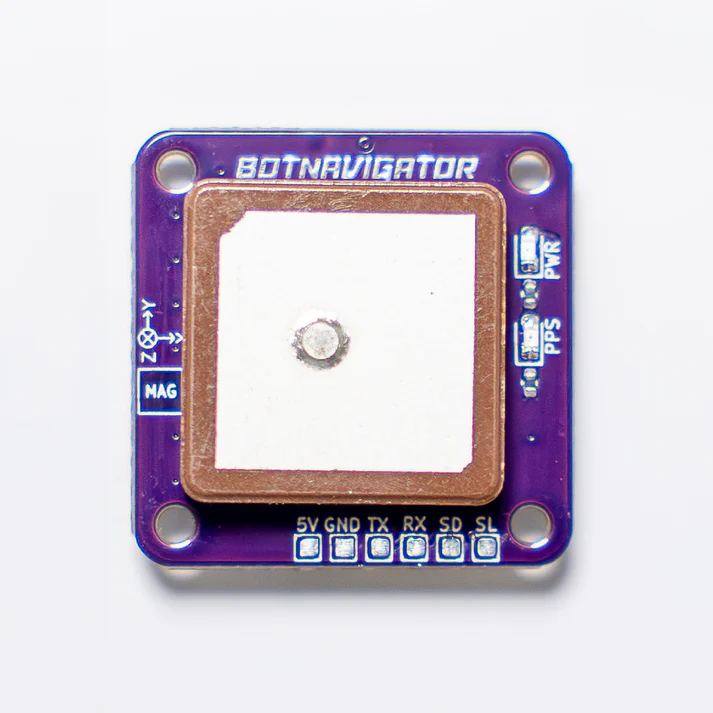

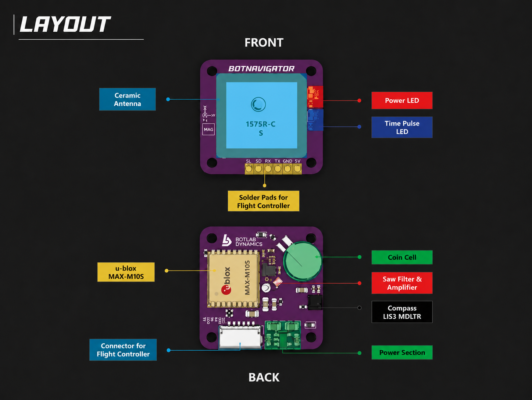

Accurate Navigation: The Built-in LIS3 MDLTR compass and high-sensitivity ceramic antenna ensure precise heading and reliable signals.

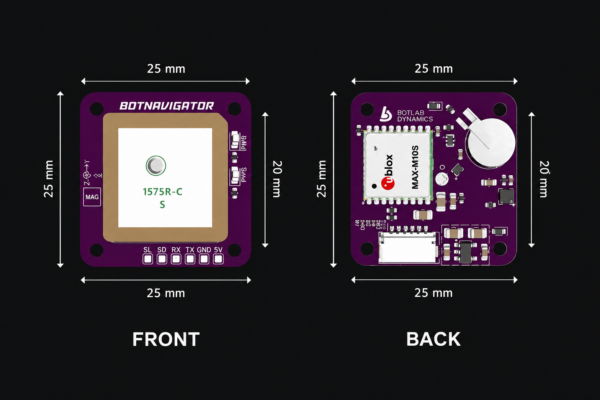

Compact, Lightweight, and Reliable: Just 25 × 25 mm, designed for small UAVs without compromising performance. Provides fast satellite acquisition and 1-second re-connection with A-GPS support.

Plug-and-Play Design: Easy integration with UAV systems through a Solderless layout and simple serial interface.

In-built SAW filter: The SAW filter uses mechanical waves to separate unwanted radio frequencies from a GPS receiver, ensuring reliable position accuracy by isolating weak satellite signals from interference.

About GNSS:

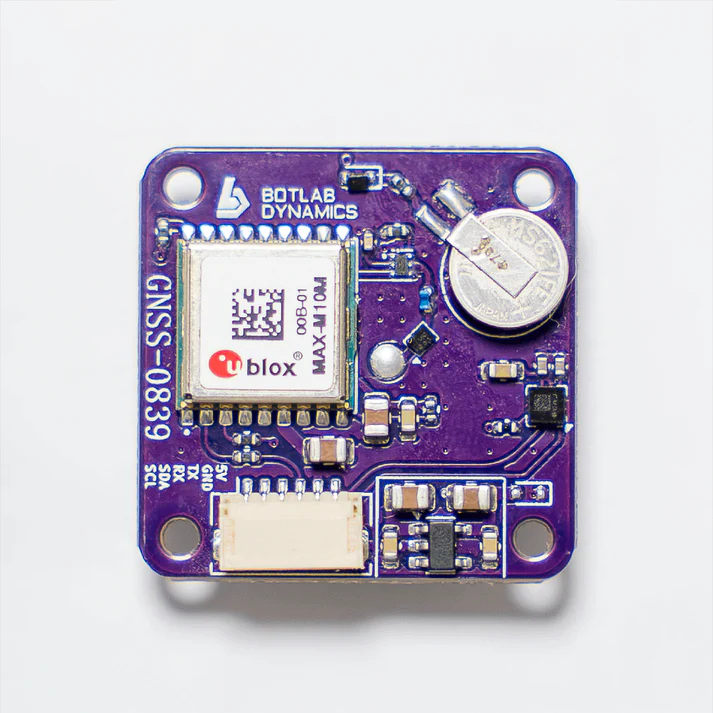

• Built around the ubiquitous u-blox M10 GPS chip, BotNavigator V1 allows you to use seven different receiving frequencies, such as GPS L1, GLONASS L1, BDS B1, Galileo E1, SBAS L1, and QZSS L1. It gets worldwide coverage and quick and stable satellite acquisition in every environment.

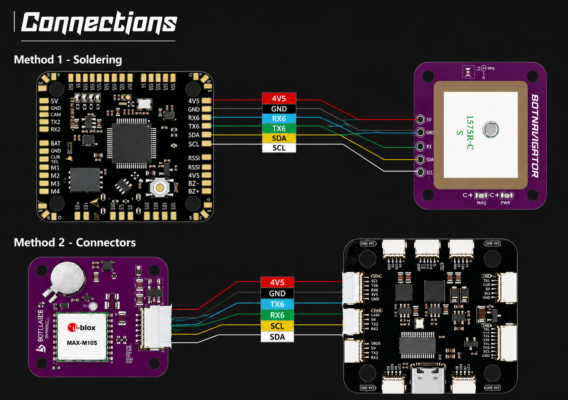

• Equipped with an LIS3 MDLTR compass for highly accurate heading and a high-sensitivity ceramic antenna, Bot Navigator GPS V1 guarantees a strong signal and reliable service. It is also equipped with UART (u-blox protocol) and I2C for easy and flexible connection with the flight controllers and is compatible with every firmware, including BetaFlight, iNav, and ArduPilot.

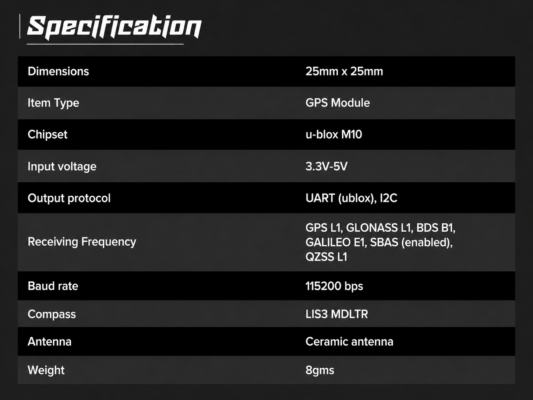

• The product is only 25×25 mm in size and can accept power from 3.3 V to 5 V. Despite being lightweight, it is still designed to perform well. The baud rate is 115200 bps, so the Bot Navigator GPS allows drone pilots to accomplish the tasks of precision flights, autonomous missions, and professional mapping without any difficulties.
• Racing, surveying, or discovering the sky that no one has explored before; in all these cases, you can depend on Bot Navigator GPS as your accurate, stable, and resourceful co-pilot.

Package Includes:

1 x BotNavigator GNSS V1 Module
