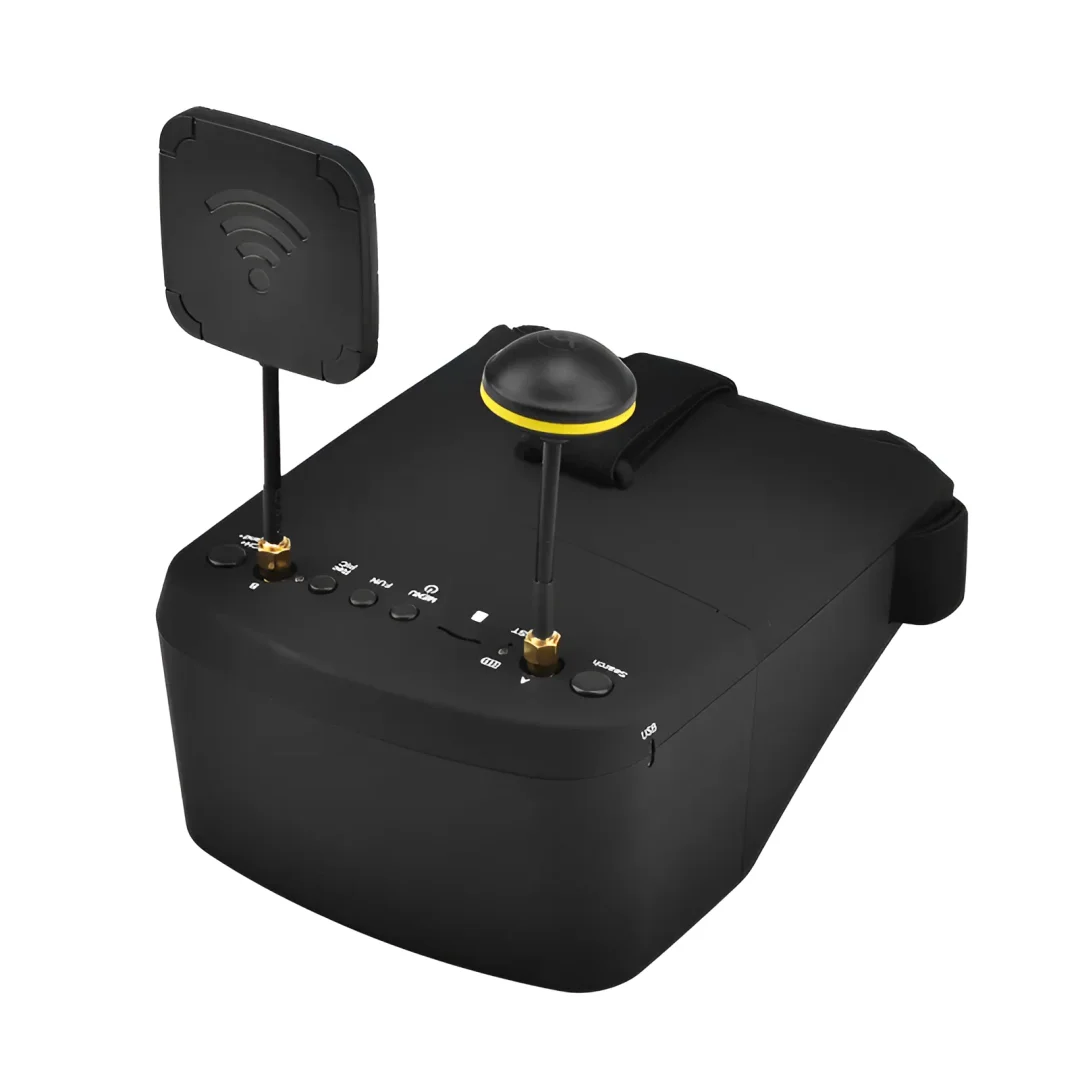

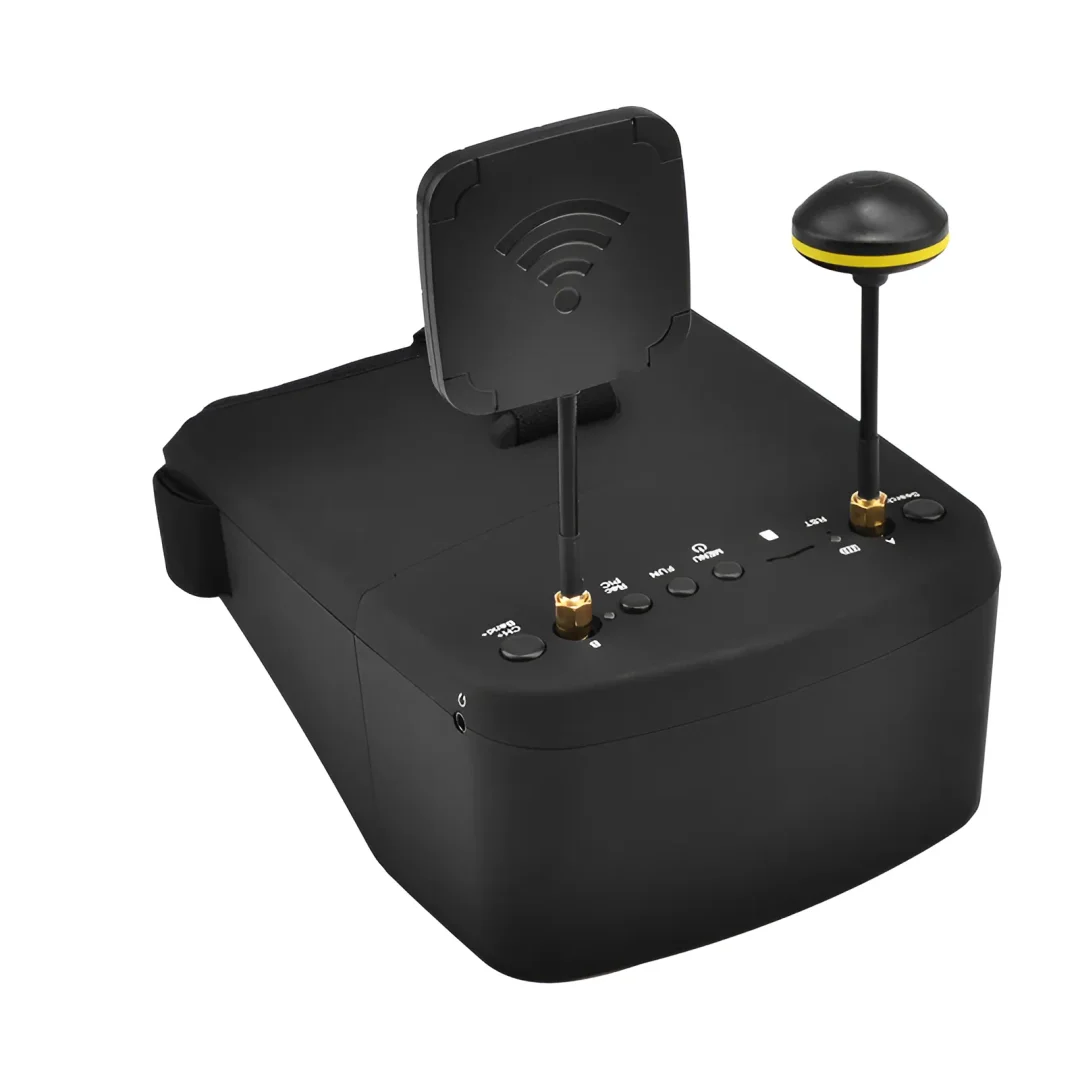

EV800D FPV Goggles with DVR

Experience immersive FPV flying with the EV800D FPV Goggles. Featuring a crisp 5-inch 800×480 display and dual antenna diversity for stronger signal reception, these goggles deliver clear and stable video from your drone. With built-in DVR, you can record your flights directly to a microSD card. The internal 2000mAh rechargeable battery provides up to 2 hours of use on a single charge.

Features:

• With DVR, you can record videos anytime and anywhere
• Low power consumption
• Double antenna reception to make the signal more stable
• Auto-searching, supports a key search frequency
• 5 inch 800×480 dot high brightness LCD screen
• Built-in super sensitivity 5.8GHz 40CH receiver, especially with RaceBand
• Built-in 3.7V / 2000mAh high-capacity Li-ion polymer battery
• Universal USB charging interface
• Real-time video return, very low time-delay
• Bilingual menu supporting Chinese and English
• Supports external video signal input
• Supports video signal output

Specification:

Model

• Name: 5.8G FPV Goggles

LCD Screen

• Screen size: 5 Inch
• Resolution: 800 × 480
• Display Ratio: 16:9
• View Angle: 6 o’clock
• Brightness: 300 cd/m² with high brightness backlight LED

Video

• Video delay: Less than 20 ms

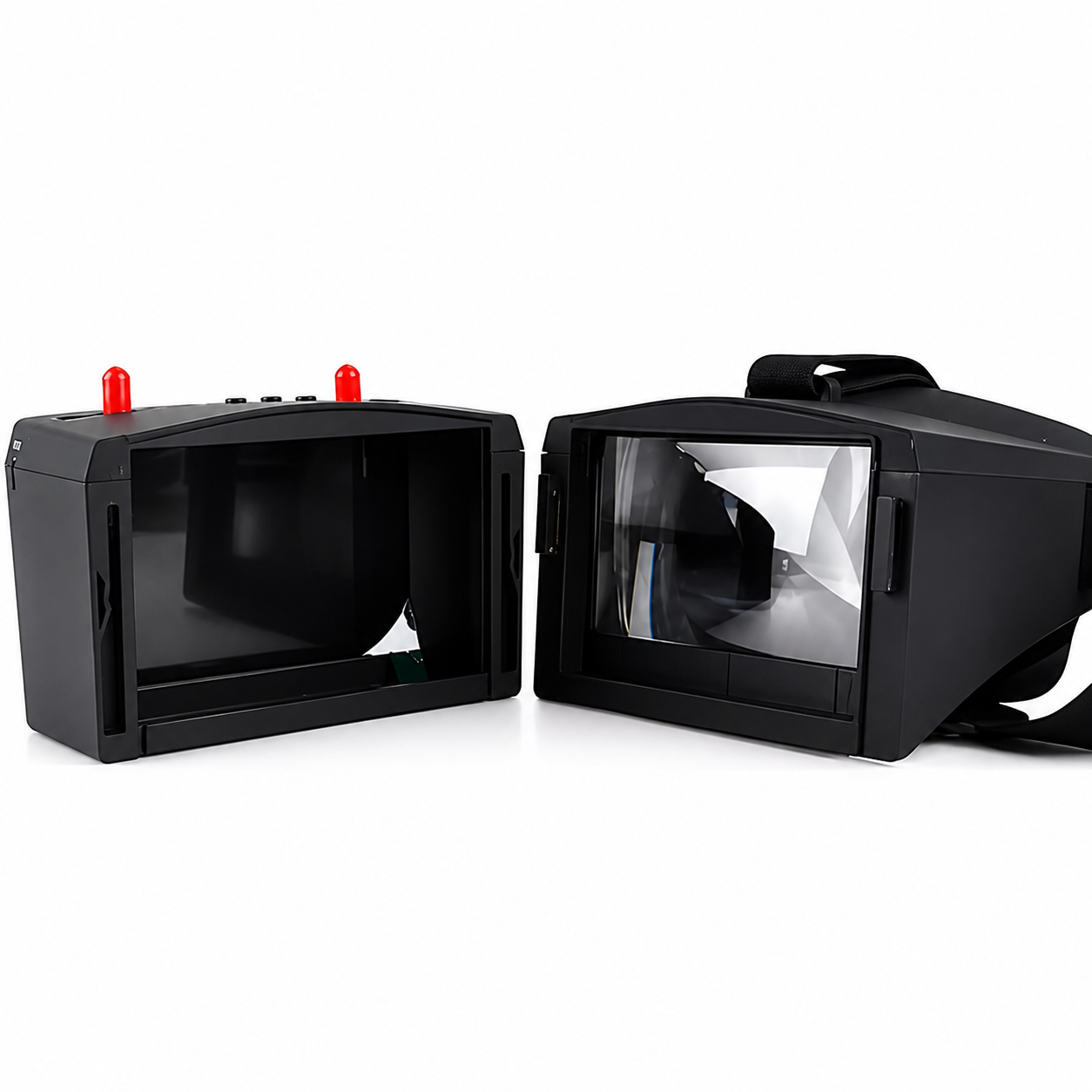

Lens

• Type: 2.8X Fresnel Lens
• Transparency: 92% transparent rate, no distortion of light

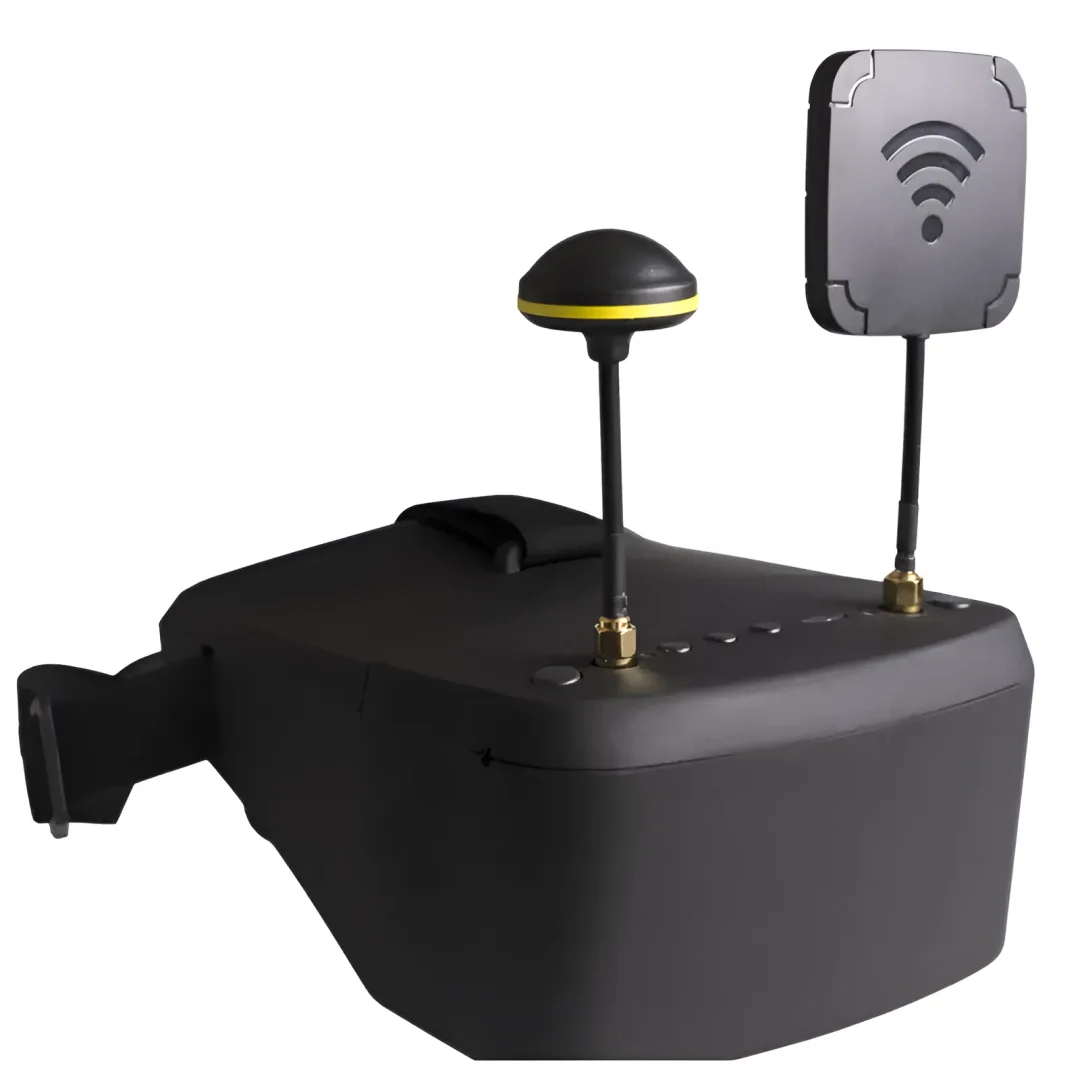

Antenna

• Type: 2 × RP-SMA male

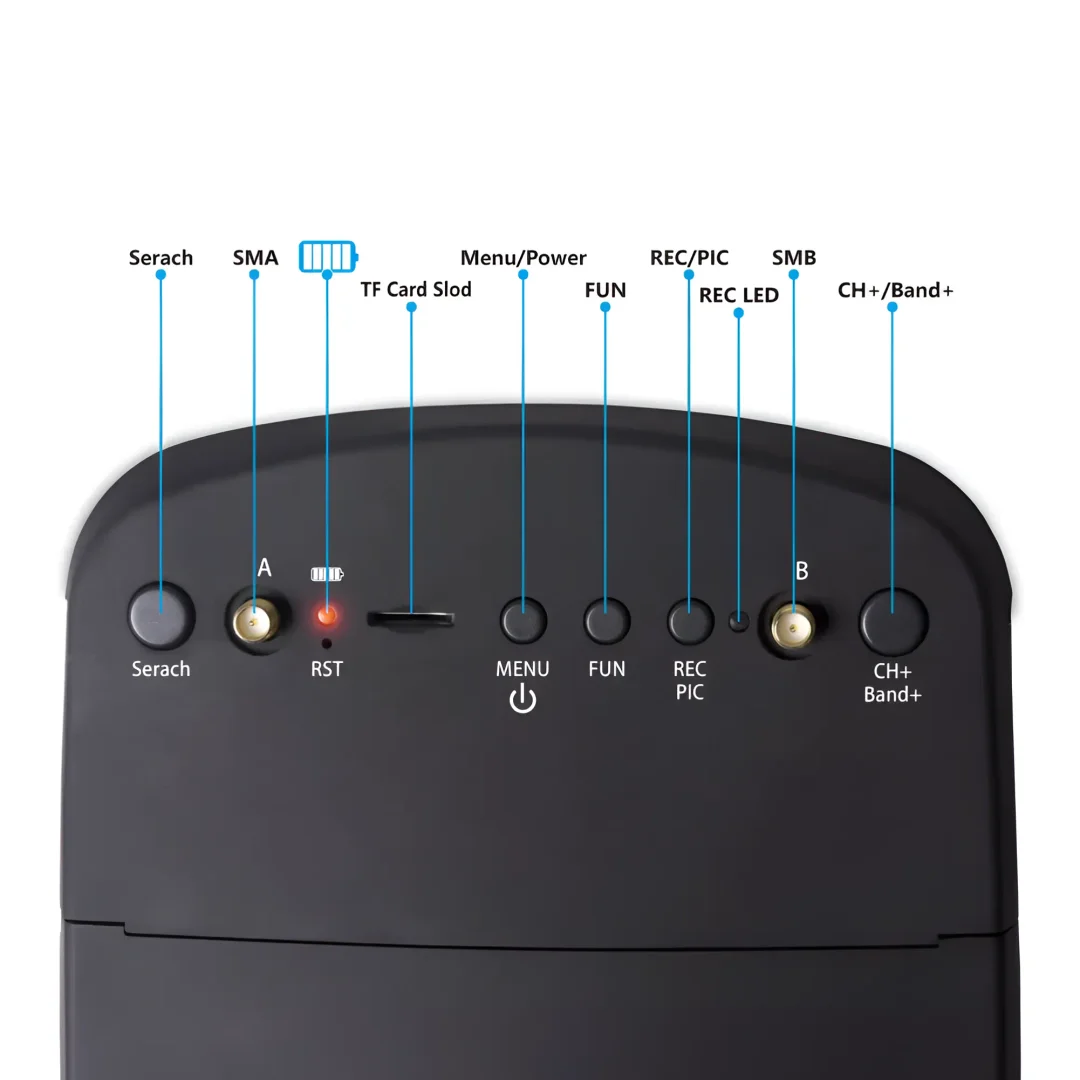

Interface

• USB: For charging the battery
• AV Jack: External video signal input or internal video signal output
• Card Slot: TF Card, supports up to 32GB (C10 recommended)

DVR

• REC size: VGA / D1 / HD (Selectable)
• REC time: OFF / 3 min / 5 min / 10 min (Selectable)
• Frame rate: 30 frames
• Compress format: MJPEG
• Record file format: AVI

Languages

• English and Chinese

Power Supply

• Power adapter: DC 5V / 2A (USB interface)
• Battery: 3.7V / 2000mAh

Working Time:

• DVR ON: Around 1.5 hours
• DVR OFF: Around 2 hours

Power Consumption:

• Normal mode: 720 mA at 3.7V
• Record mode: 1000 mA at 3.7V
• Max charging current: 500 mA

Wireless (Frequency Table MHz)

Band A:

• CH1: 5865 | CH2: 5845 | CH3: 5825 | CH4: 5805
• CH5: 5785 | CH6: 5765 | CH7: 5745 | CH8: 5725

Band B:

• CH1: 5733 | CH2: 5752 | CH3: 5771 | CH4: 5790
• CH5: 5809 | CH6: 5828 | CH7: 5847 | CH8: 5866

Band E:

• CH1: 5705 | CH2: 5685 | CH3: 5665 | CH4: 5645
• CH5: 5885 | CH6: 5905 | CH7: 5925 | CH8: 5945

Band F:

• CH1: 5740 | CH2: 5760 | CH3: 5780 | CH4: 5800
• CH5: 5820 | CH6: 5840 | CH7: 5860 | CH8: 5880

Band R:

• CH1: 5658 | CH2: 5695 | CH3: 5732 | CH4: 5769
• CH5: 5806 | CH6: 5843 | CH7: 5880 | CH8: 5917

Body

• Dimensions: 180 × 140 × 84 mm
• Weight: 393 g (with headband, antennas not included)

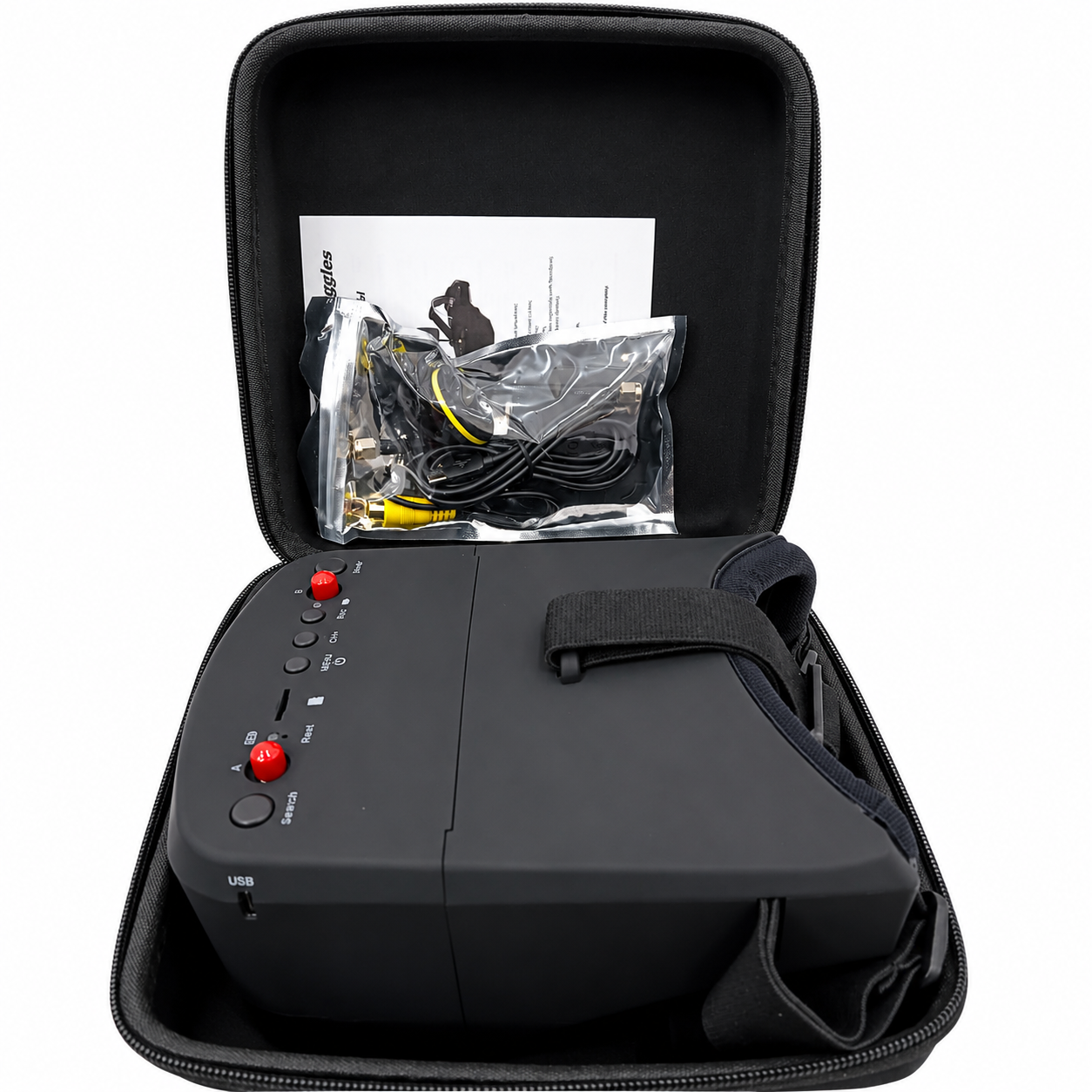

Includes:

• 1x EV800D 5.8GHz Analog FPV Goggles
• 1x Patch Antenna
• 1x Omni Antenna
• 1x AV Cable
• 1x AC Adapter
• 1x Zippered Carrying Case
