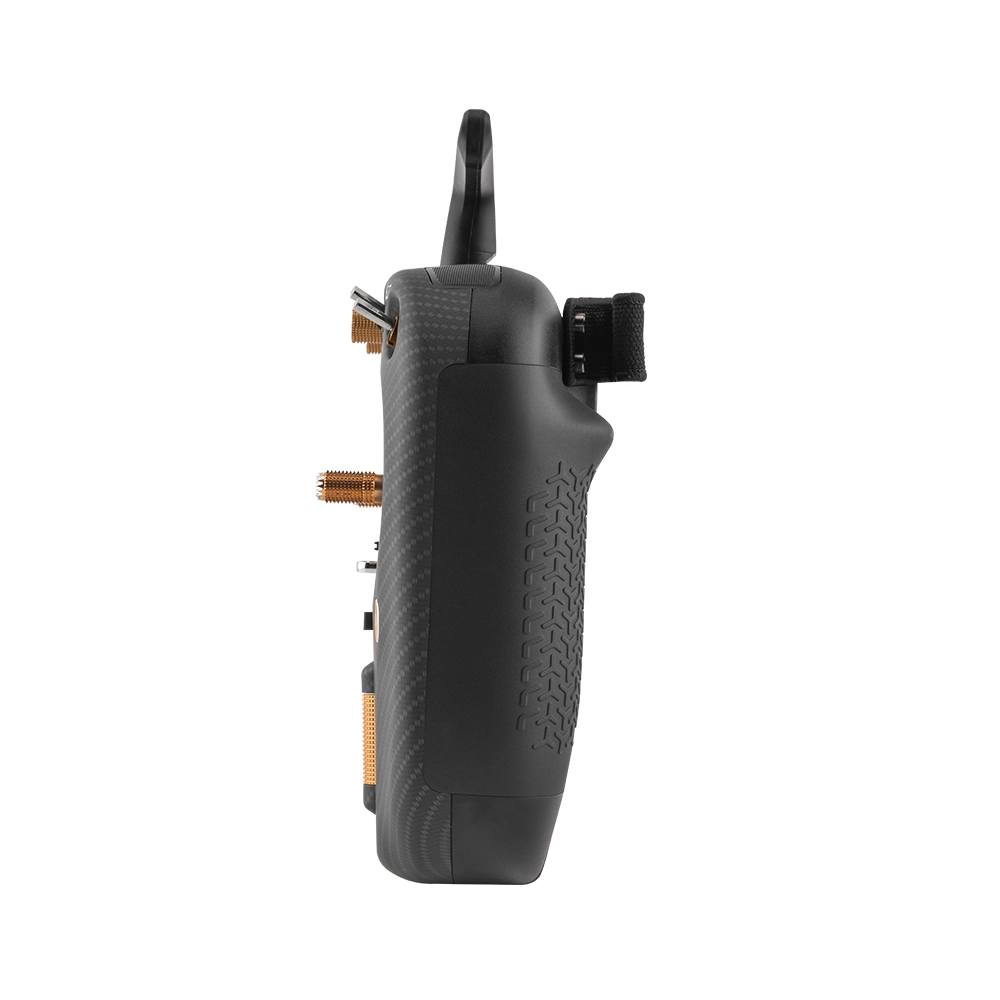

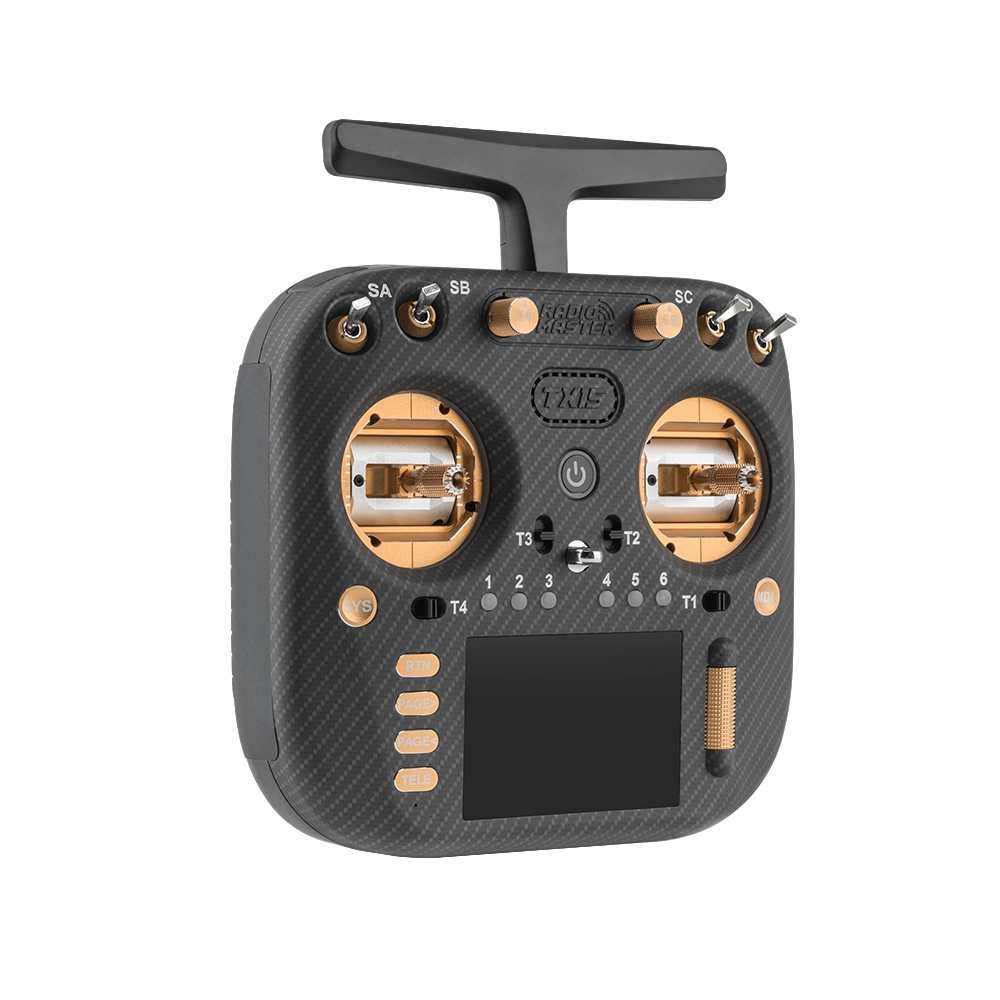

Radiomaster TX15 MAX Radio Controller (ELRS / M2) GOLD

RadioMaster continues to redefine the open-source remote control landscape. After years of collaboration with our open-source partners and users, we are proud to introduce the TX15 MAX. Driven by the high-performance STM32 H7 chip, it’s the powerhouse behind our fastest radio ever — enabling ultra-smooth EdgeTX control, instant model switching, and lightning-quick script execution. With flash storage and MicroSD card expansion, you’ll have virtually unlimited space for models, scripts, sounds, and themes.

The TX15 MAX features an LR1121 Semtech transceiver, supporting both 2.4GHz and 900MHz ExpressLRS (ELRS) for exceptional low-latency performance. Whether you’re using it daily or in challenging RF environments, the TX15 is engineered to deliver reliable results. A smart balance battery circuit optimizes runtime, while the compact, foldable antenna design enhances portability and maintains strong signal quality. The built-in gyro with TiltX/TiltY functions unlocks advanced control options, allowing you to trigger switches, adjust accessories, or activate telemetry features with a simple tilt of your radio.
This versatile module combines durability, ease of use, and innovative features, making it an outstanding choice for demanding setups.

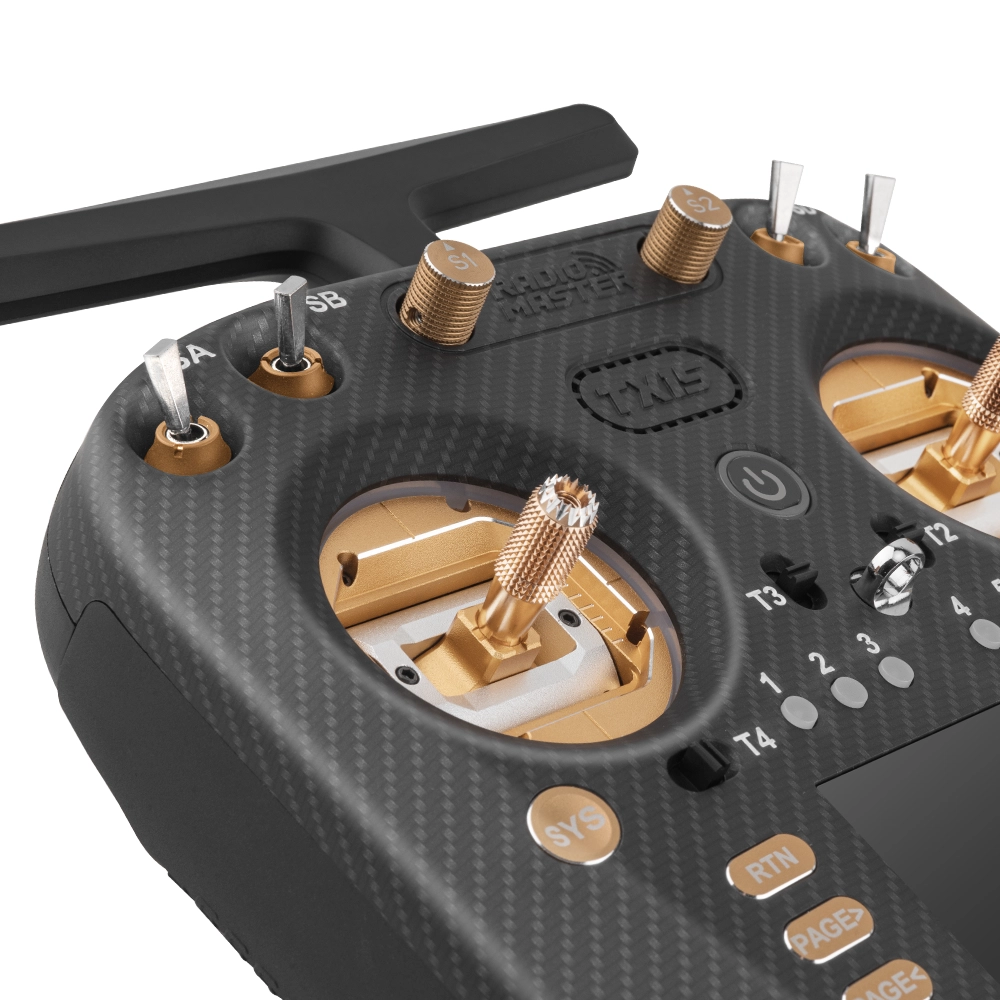

Enjoy sharp visuals on the 3.5-inch IPS touchscreen with 262k color resolution and 600 nits brightness, even in sunlight. The TX15 MAX boasts AG02 CNC aluminum gimbals in anodized red, black or gold, upgraded aluminum buttons, a scroll wheel, and a carbon-fiber-look case for a premium feel. Integrated RGB LED lights around the gimbals allow customizable LUA-controlled lighting. It includes advanced cooling, a USB-C charging port, SIM connectivity, firmware updates, and fast memory access for top-tier performance. We’ve included additional switches so you can swap out the shoulder buttons with either a momentary or two-position latching switch—perfect if you prefer a traditional switch over a button. Prefer the standard model? See the TX15 Standard.

Step into the future. TX15: The Future Is Here, One Step Ahead.

Features:

• Blazing-Fast Performance: The STM32 H7 chip powers our fastest radio ever.
• Touchscreen Display: 3.5-inch, 480 x 320 IPS touchscreen with vivid colors and sharp detail.
• Precision Gimbals: the premium AG02 gimbals for enhanced smoothness.
• Built-in ExpressLRS: 2.4GHz / 900MHz ExpressLRS integration for reliable and stable signal.
• Smart Balance Battery Circuit: Maximizes battery efficiency and optimizes runtime.
• Powerful, Cooling System: Low noise, high output fans and an aluminium heat sink keep your radio cool even on the hottest days.
• AG02 Gimbal: More than 20% reduced weight, with adjustable travel on both vertical and horizontal axis.
• Customizable RGB Gimbal Light- Ring: Integrated RGB LED lights around the gimbals allow customizable LUA-controlled lighting.
• Foldable Antenna: Compact and easy to store without compromising signal strength.
• Built-in Microphone: For future feature expansion.
• Built-in Motion Sensor: Trigger switches, pan/tilt cameras, or telemetry callouts simply by tilting your radio.
• Storage:  Built-in flash memory with external SD card support.
• Interchangeable Shoulder Switches: Customize your controls to match your style.

Specifications:

• Item: TX15 Max Radio Controller

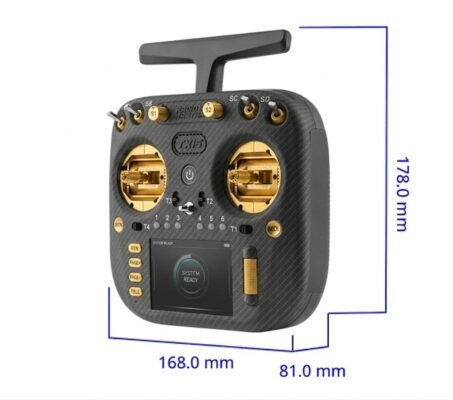

• Size: 178*168*81mm
• Weight: 672g (without battery)
• Color: Red/ Black/ Gold
• Frequency: 2.400GHz OR Sub-G 900MHz
• Internal RF: ELRS 2.4GHz / Sub-G 900MHz
• Supported Protocols: Express-LRS
• Cooling Fan: Yes
• Transmitter Module: Built-in ELRS
• Built-in Flash: Yes
• Built-in Microphone: Yes (Future expansion)
• Built-in Motion Sensor: Yes (ICM-42607-C)

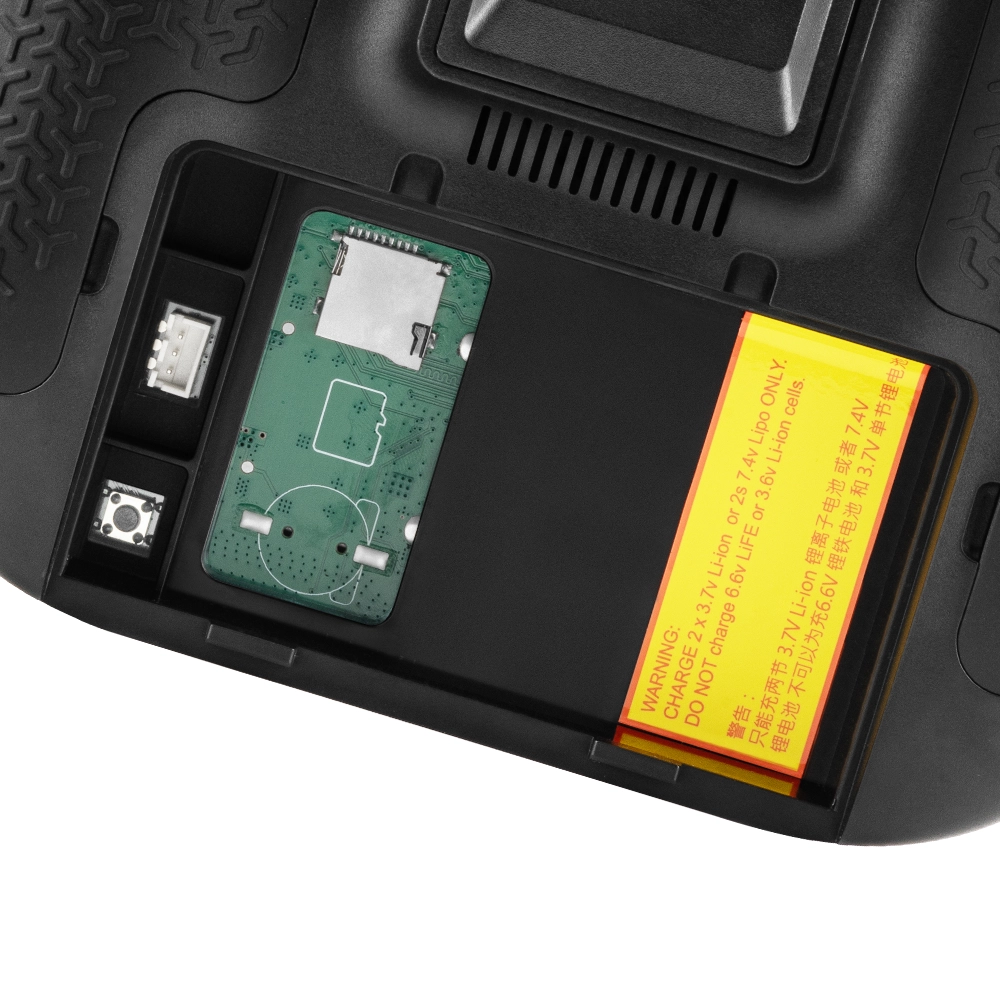

• MicroSD card* (Not included): 32GB/FAT32 (Inserting a MicroSD card will disable the onboard flash)
• Antenna Gain: 2dB (transmit power adjustable)
• Current: 875mA at max power output
• Voltage Range: 6.6 – 8.4V DC
• Radio Firmware: EdgeTX (Transmitter) (requires version 3.0.0 or later)
• Module Firmware: ExpressLRS
• Channels: Max 16 channels (Receiver dependent)
• Display: 3.5-inch IPS touchscreen (480 x 320 resolution)
• Battery: 7.4V 2-cell Lithium-Polymer / Two 3.7V 18650 Lithium-Ion cells / 21700 5000mAh Battery (batteries not included)
• Connectivity: USB-C
• Gimbals: AG02 CNC Hall sensor gimbals
• Gimbal Sticks: M4
• Upgrade Method: USB-C (UF2)
• Module Bay: JR-compatible module bay for additional modules

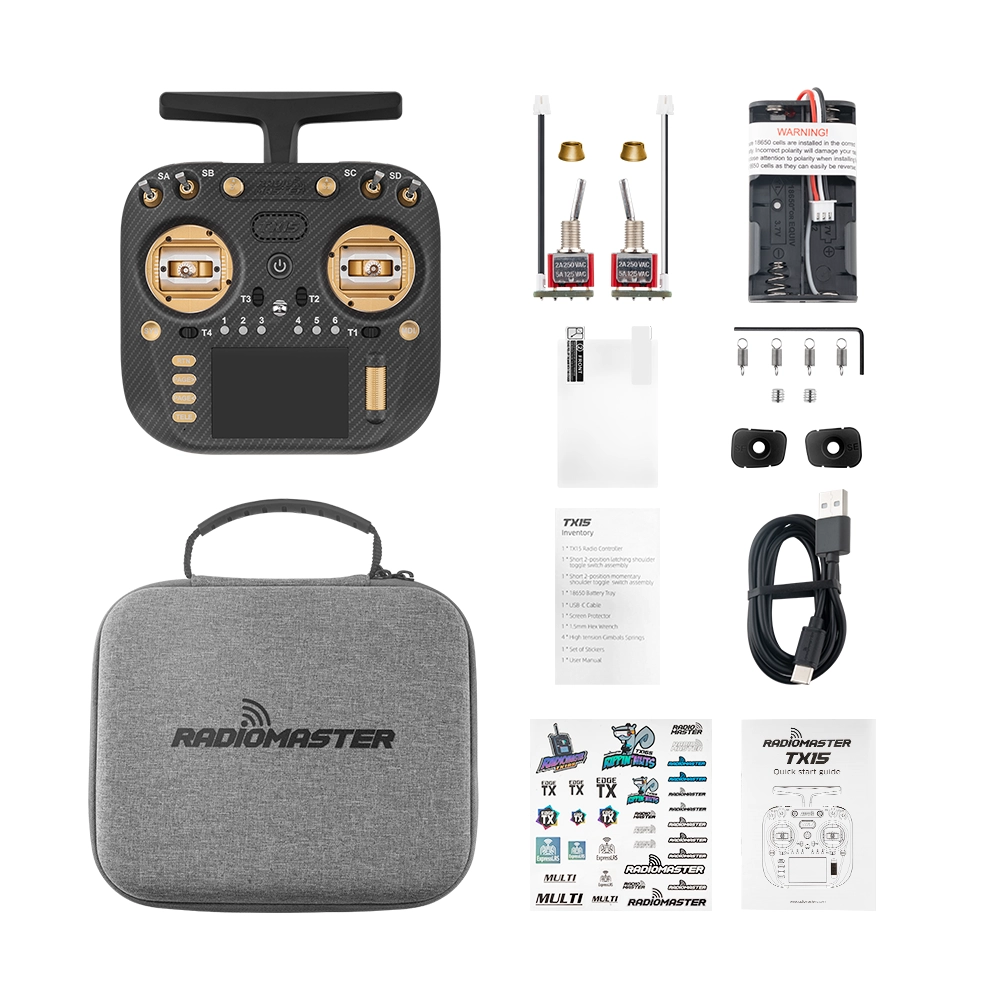

Package Includes:

• 1 * TX15 Max Radio Controller
• 1 * Signature Carry Case
• 1 * Short 2-position Latching Shoulder Toggle Switch Assembly
• 1 * Short 2-position Momentary Shoulder Toggle  Switch Assembly
• 1 * 18650 Battery Tray
• 1 * USB-C Cable
• 1 * Screen Protector
• 1 * 1.5mm Hex Wrench
• 4 * High Tension Gimbals Springs
• 2 * Gimbal Stick Set Screw
• 1 * Stickers Set
• 1 * User Manual
• 1 * Inventory Card

TX15 Max is installed with ExpressLRS as standard.

ExpressLRS is an open-source, high-performance radio control link that delivers exceptional range and low-latency communication using advanced LoRa technology. It’s highly customizable and perfect for RC enthusiasts looking for reliability and efficiency.

Pair your ExpressLRS with Radiomaster’s top-tier transmitters and receivers. Radiomaster products are designed to maximize the benefits of ExpressLRS, offering state-of-the-art performance for your RC adventures. Upgrade your RC experience with the unbeatable combination of ExpressLRS and Radiomaster—engineered for excellence and tailored for you.
