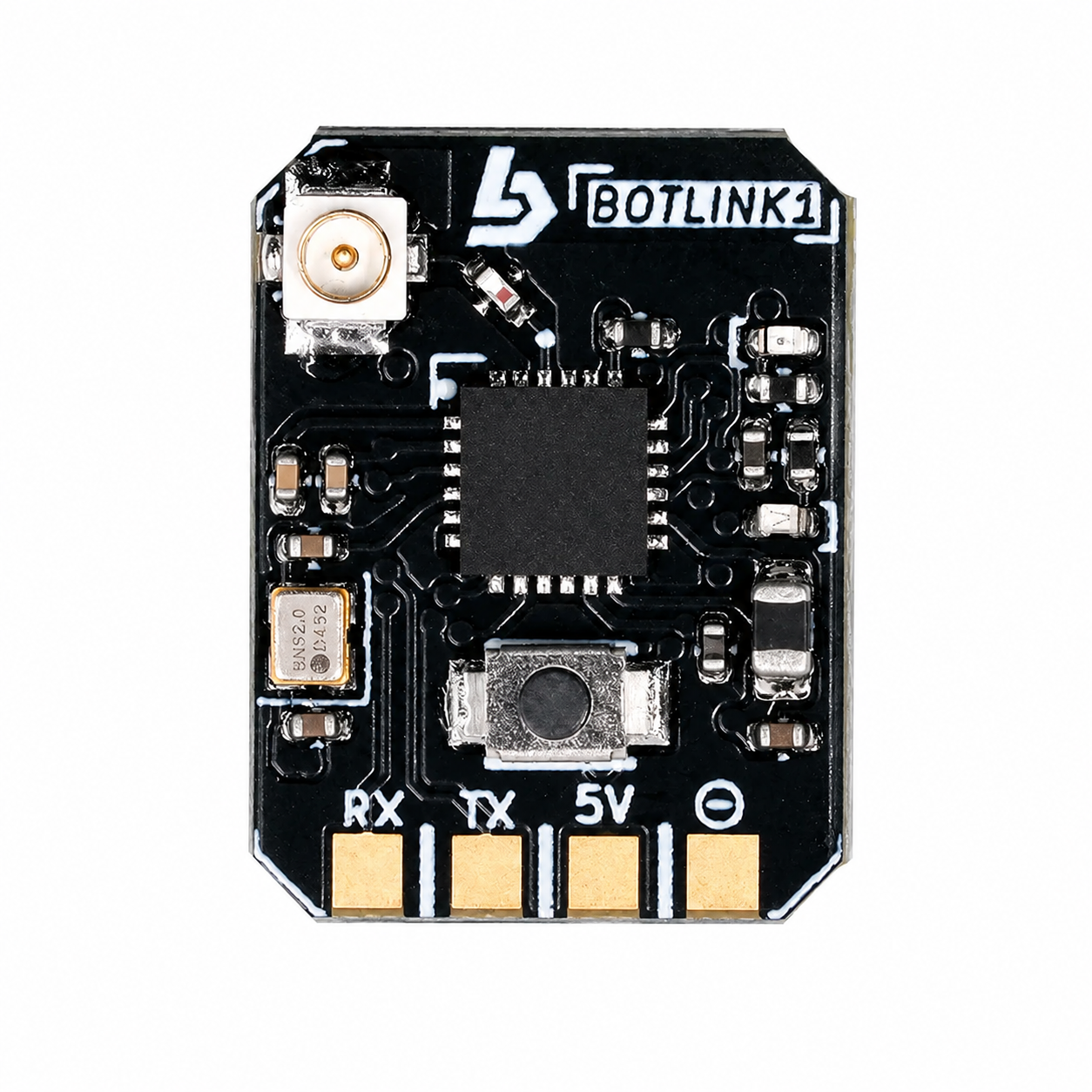

BotLink Express LRS 2.4GHz Receiver V1

BotLink ELRS Guide:

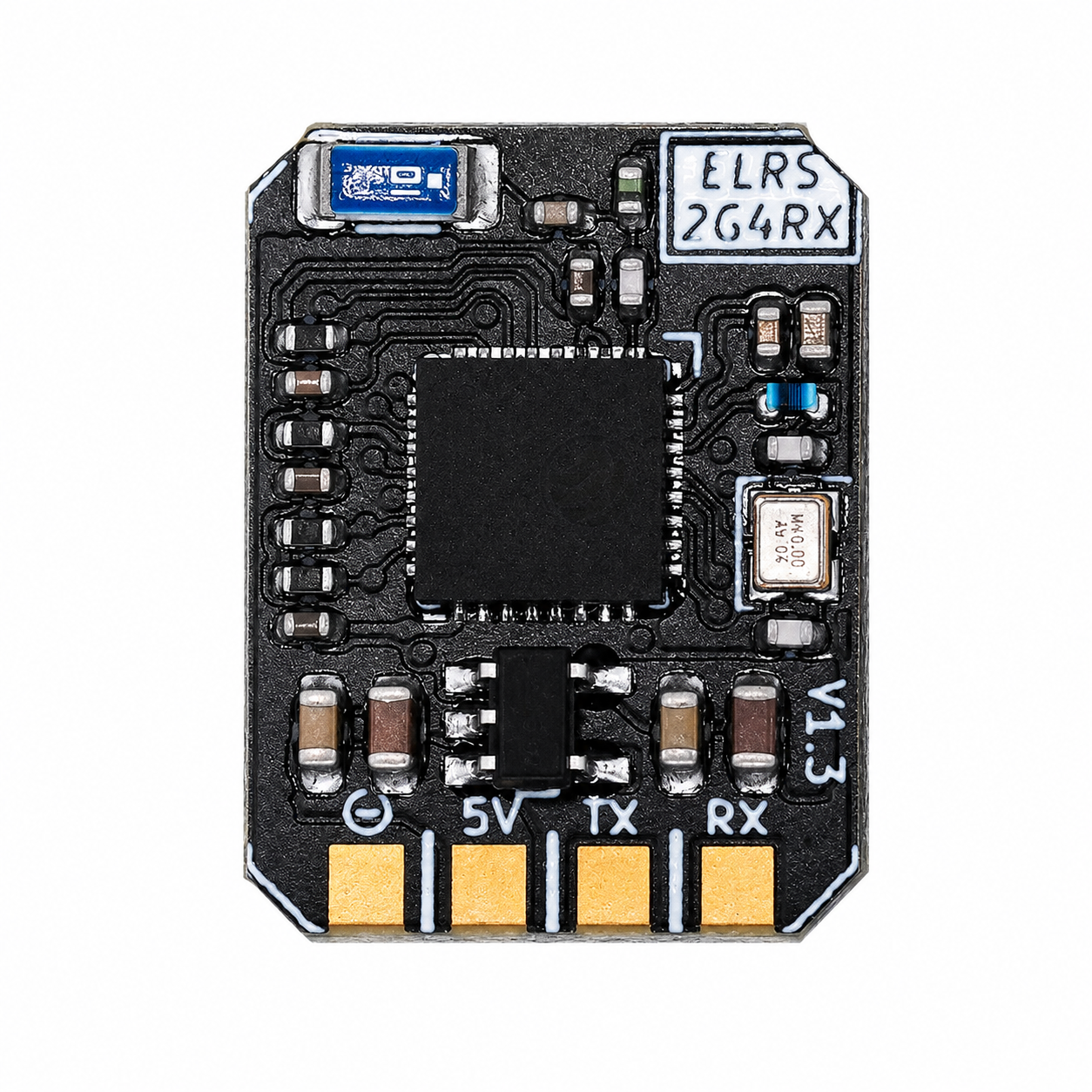

• High-Performance ELRS Receiver: Built with an ESP32 chip and fully compatible with ExpressLRS firmware right out of the box.
• Stable Signal & Range: Equipped with a 2.4 GHz T antenna for reliable long-distance connectivity.
• Consistent Performance and Fast Response: Reliable ELRS with temperature-compensated crystal; supports up to 500 Hz packet rates for smooth control.

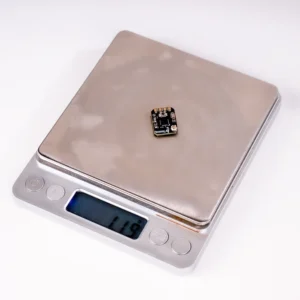

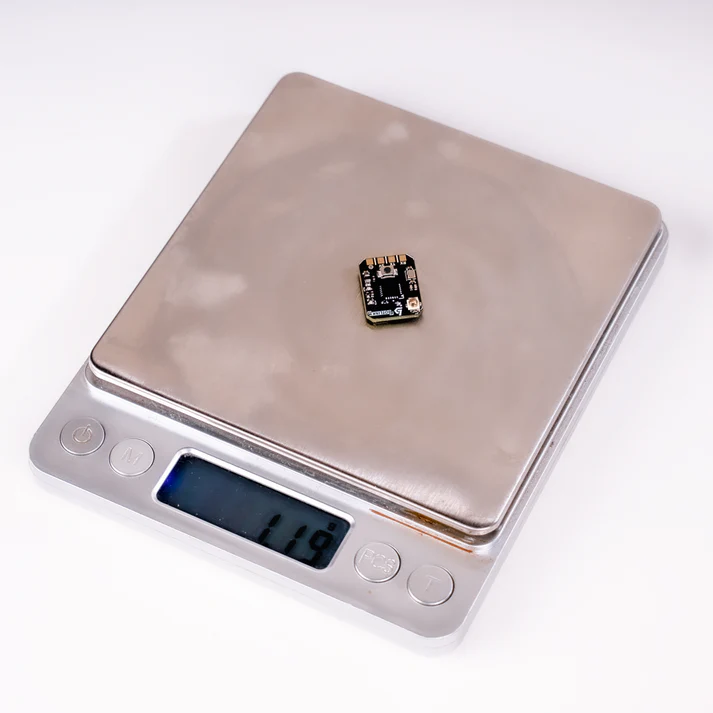

• Compact & Ready to Use: Compact 1.18g, 5V, ExpressLRS v3.5.1 pre-installed, fits tight drone builds.
• Simple Binding: Connect quickly using your ELRS phrase or the onboard bind button.

About ELRS:

• Take your control to the next level with BotLink, the 2.4GHz ExpressLRS receiver engineered for pilots who refuse to compromise. Powered by ESP32C3 High-Performance MCU Delivers fast, reliable processing for ultra-low latency and responsive communication.
• Powered by the Semtech SX1280 RF chip, this module offers rock-solid connectivity even in high-interference environments. With a packet rate of up to 500Hz, it delivers lightning-fast control and responsiveness. The built-in 10mW telemetry ensures reliable, low-power system feedback, while a precision TCXO maintains signal stability across temperature changes.

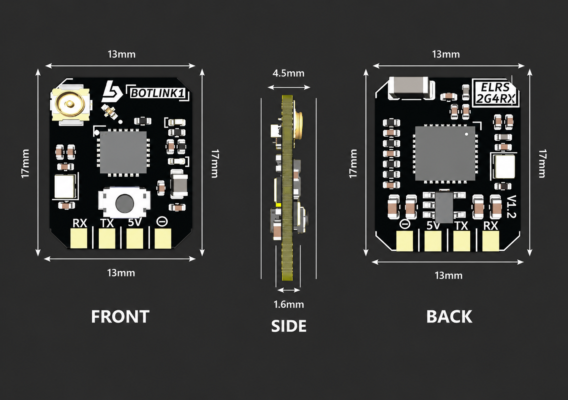

• Its upgraded 2.4GHz T antenna boosts range and reduces latency, and it comes preloaded with ExpressLRS v3.5.6 for seamless integration. Despite its performance, it remains ultra-compact at 17×13×4mm, and a standard 5V input for broad compatibility. Fully ExpressLRS-compatible, it supports CRSF interface and is ready for any modern FPV setup.

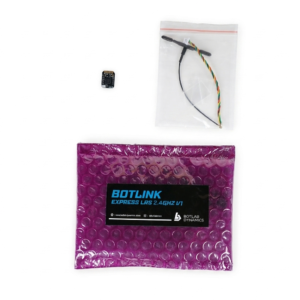

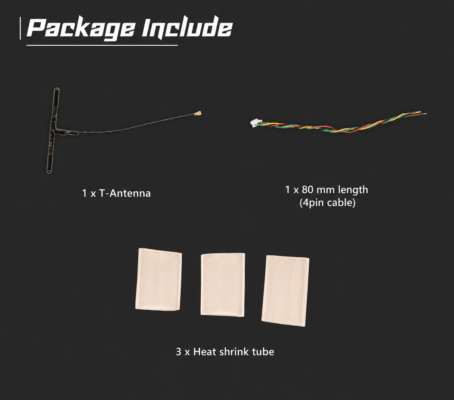

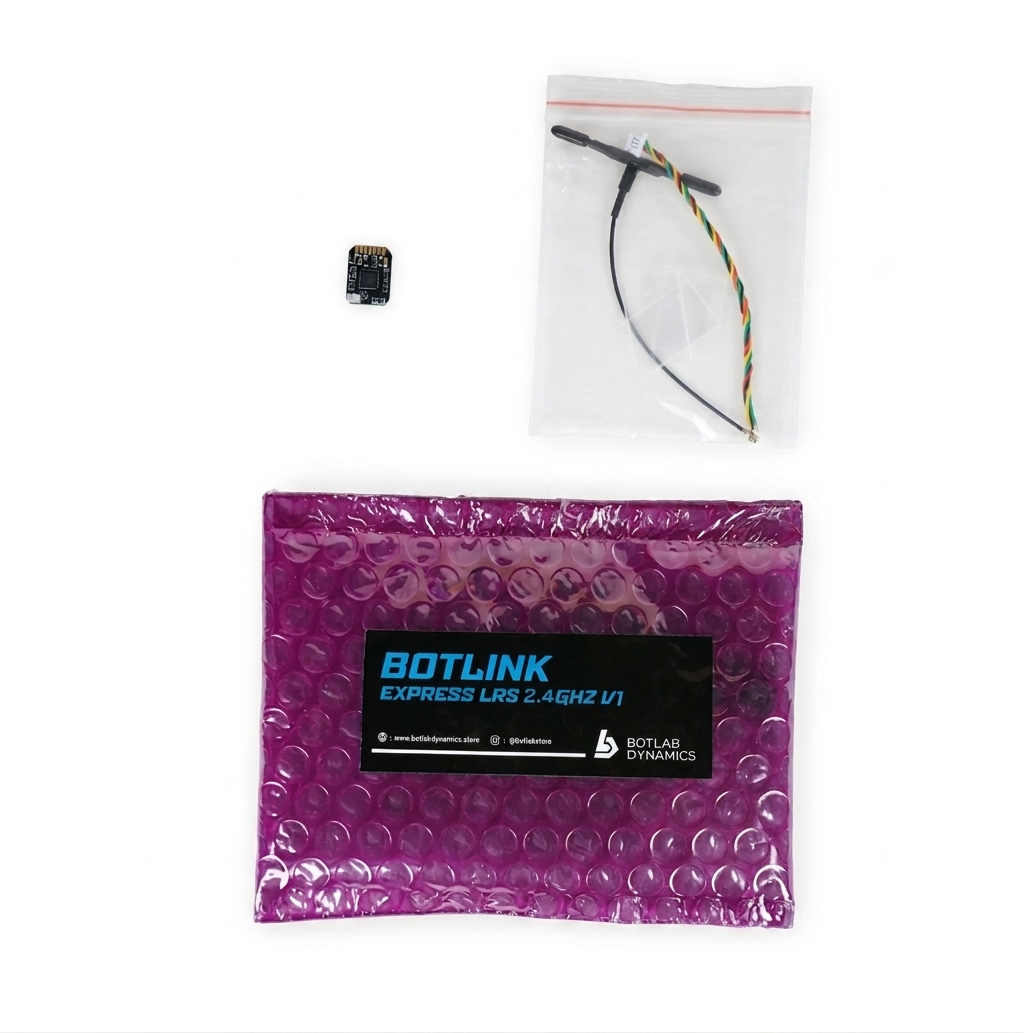

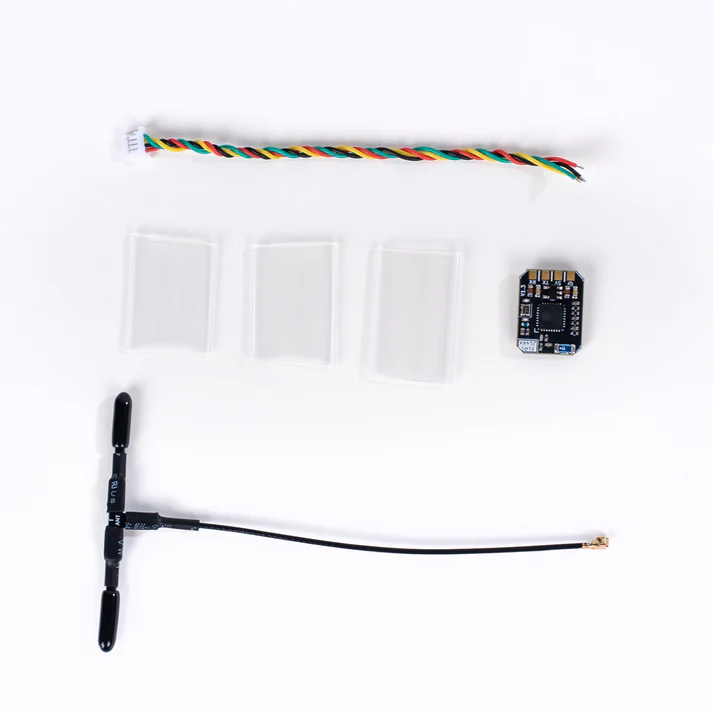

Package Includes:

1 x BotLink Express LRS 2.4GHz Receiver V1

1 x Dipole T antenna

3 x Heat Shrink Tube
