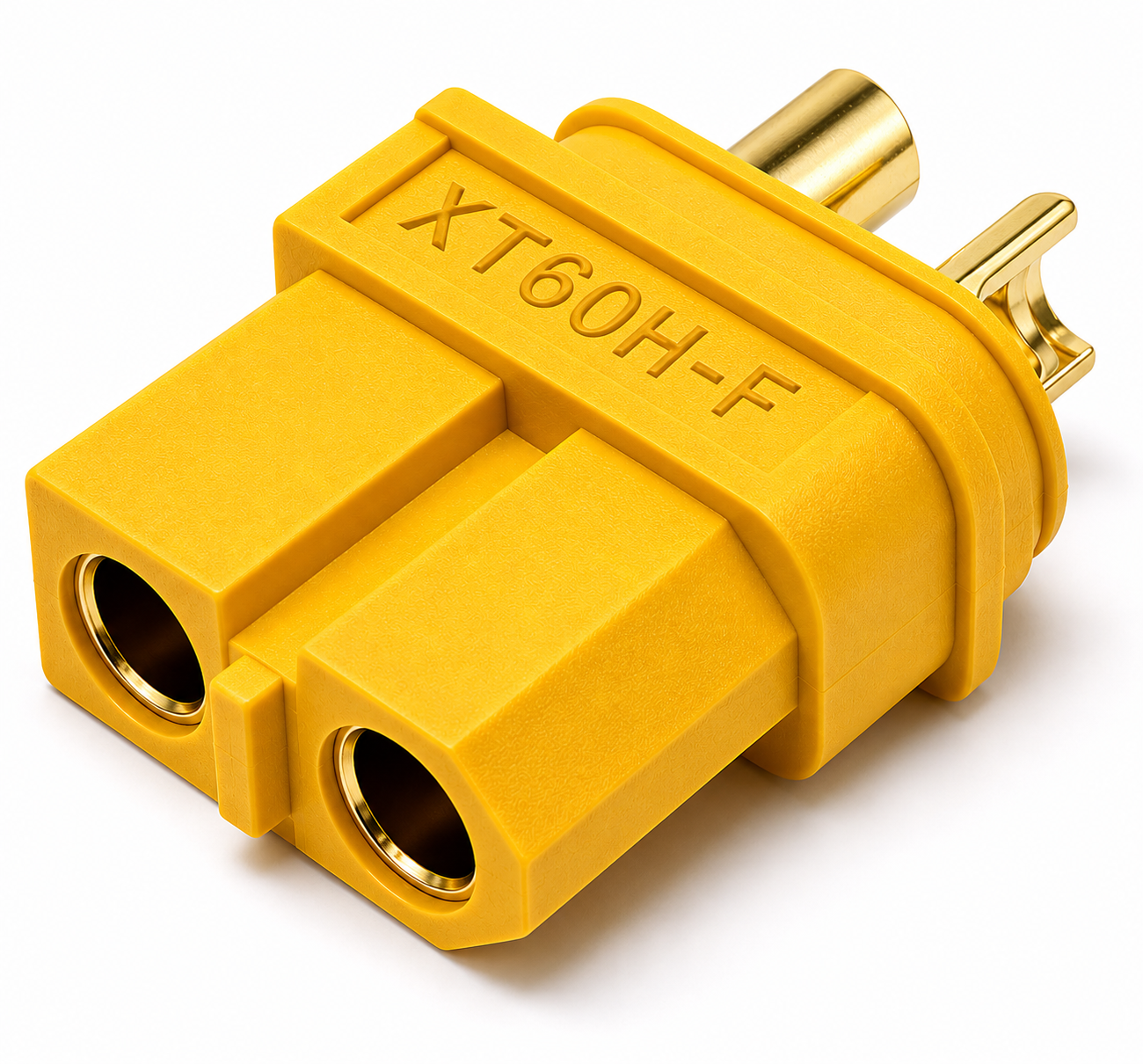

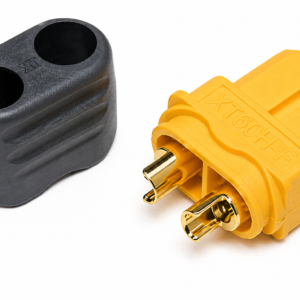

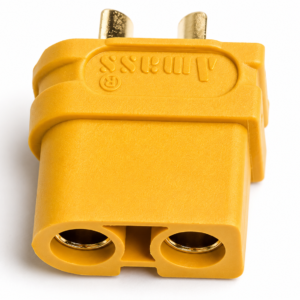

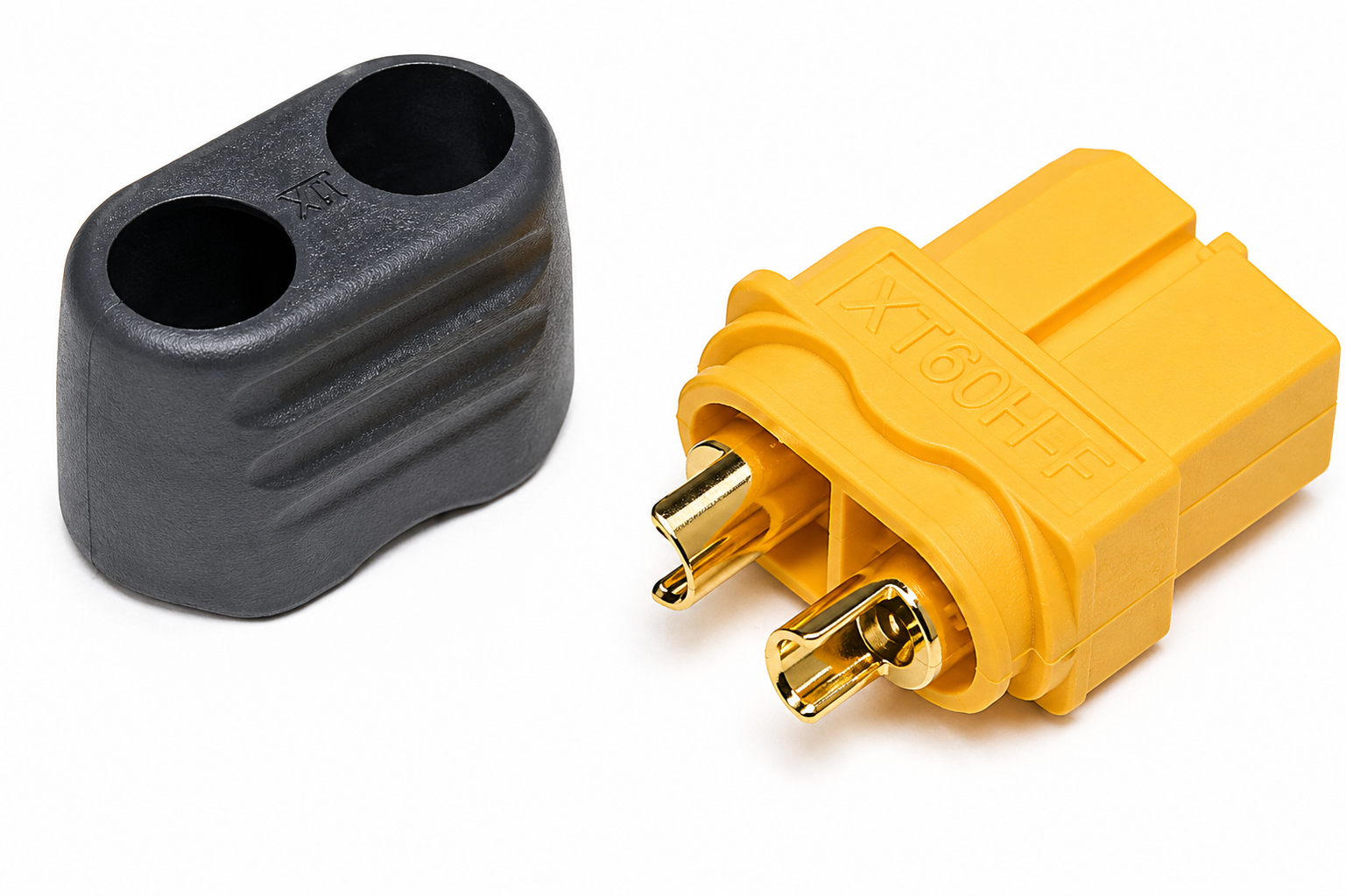

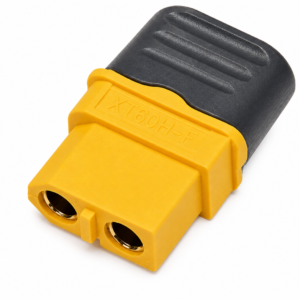

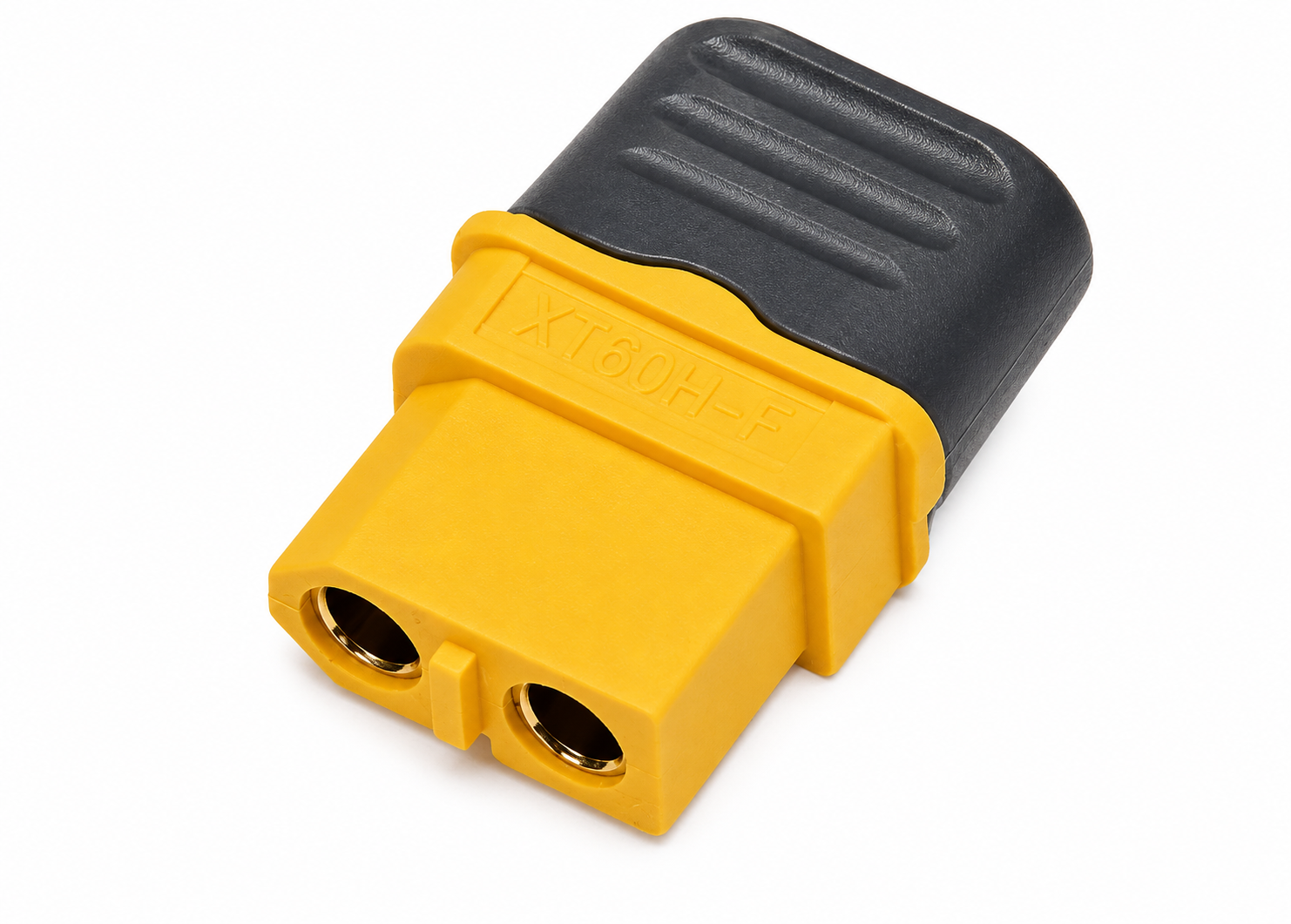

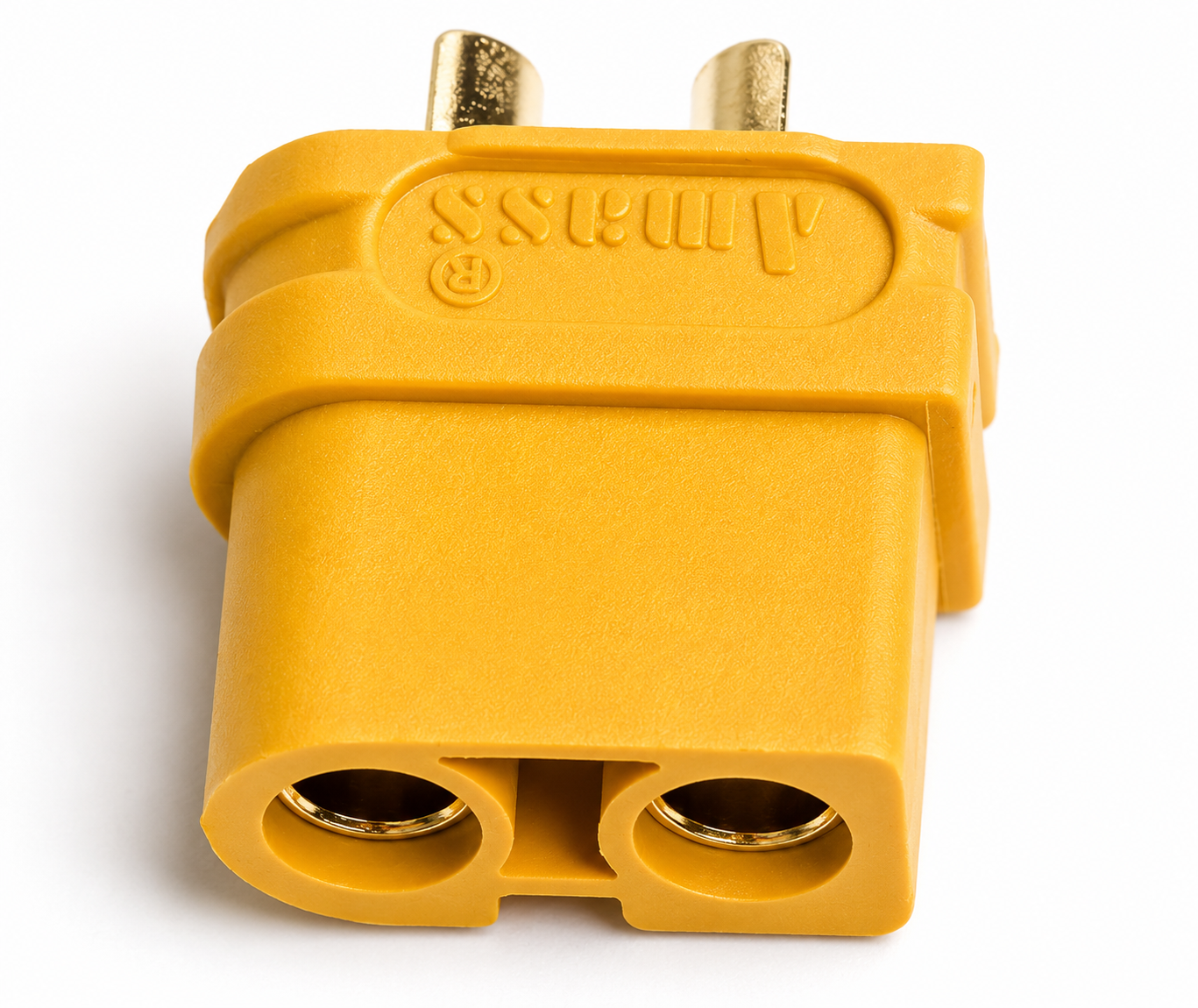

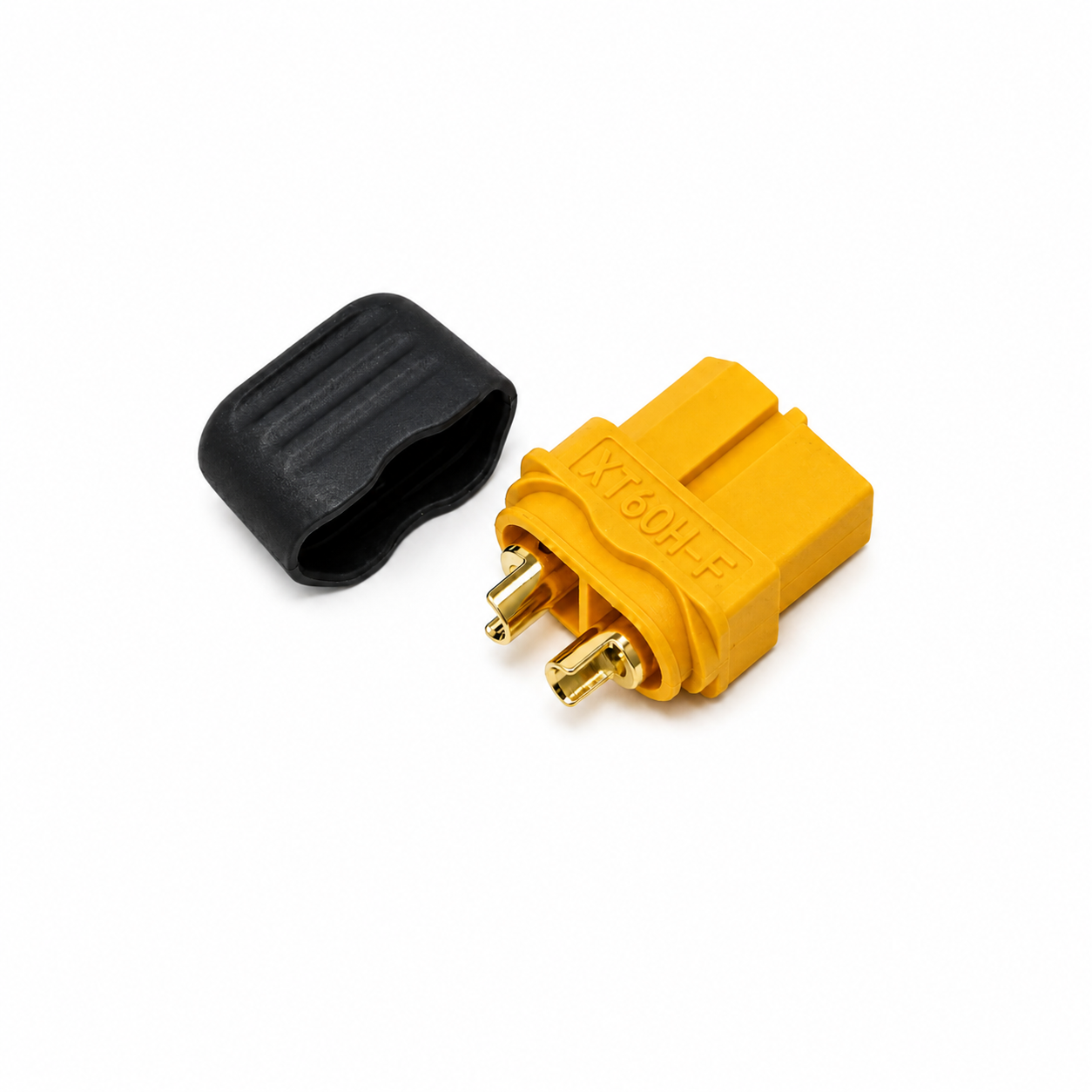

Amass Connector XT60H-F.G.Y

The Amass XT60H Female Connector with Housing – XT60H-F.G.Y is a high-quality power connector designed for reliable, high-current applications. Built with precision by AMASS, this connector offers the same trusted performance as the original XT60, now improved with a compact design, flame-retardant nylon housing, and gold-plated brass contacts. Its integrated grip and enclosed housing make it easier and safer to use, especially in rugged drone, RC, and electric systems.

Key Features:

• High-current capacity up to 60A

• Compact and lightweight design

• Flame-retardant nylon housing (UL94-V0)

• Secure fit with improved grip area for easy handling

• Compatible with 12AWG to 14AWG wires

• Backward compatible with original XT60 connectors

• Gold flash plated contacts for enhanced conductivity

• Tight locking housing protects solder joints

Specifications and Features

1. Mechanical mounting for cable
2. Electrical mounting soldered
3. Contact plating Gold flash
4. Spatial Orientation Straight
5. Contact Material: Brass
6. Compatible for Wire size up to 12AWG

Technical Specifications:

• Model Series: XT60H

• Connector Type: XT60H (Female)

• Item Type: Battery Connector

• Gender: Female

• Rated Current: 60A

• Operating Voltage: 500V DC

• No. of Contact Points: 2

• Contact Material: Brass

• Contact Plating: Gold flash

• Metal Connector Size: 4.5 mm

• Allowed Wire Size: 12 to 14 AWG

• Color: Yellow-Gray

• Weight: 8g

• Operating Temperature: -20°C to 120°C

• Flammability Rating: UL94-V0

Package Includes:

• 1 × Amass XT60H Female Connector with Housing – XT60H-F.G.Y

Applications:

• Battery connection ports in agri-drones

• ESC and power distribution systems

• High-current setups for UAVs and robotic projects

• EV prototyping and drone charging setups
